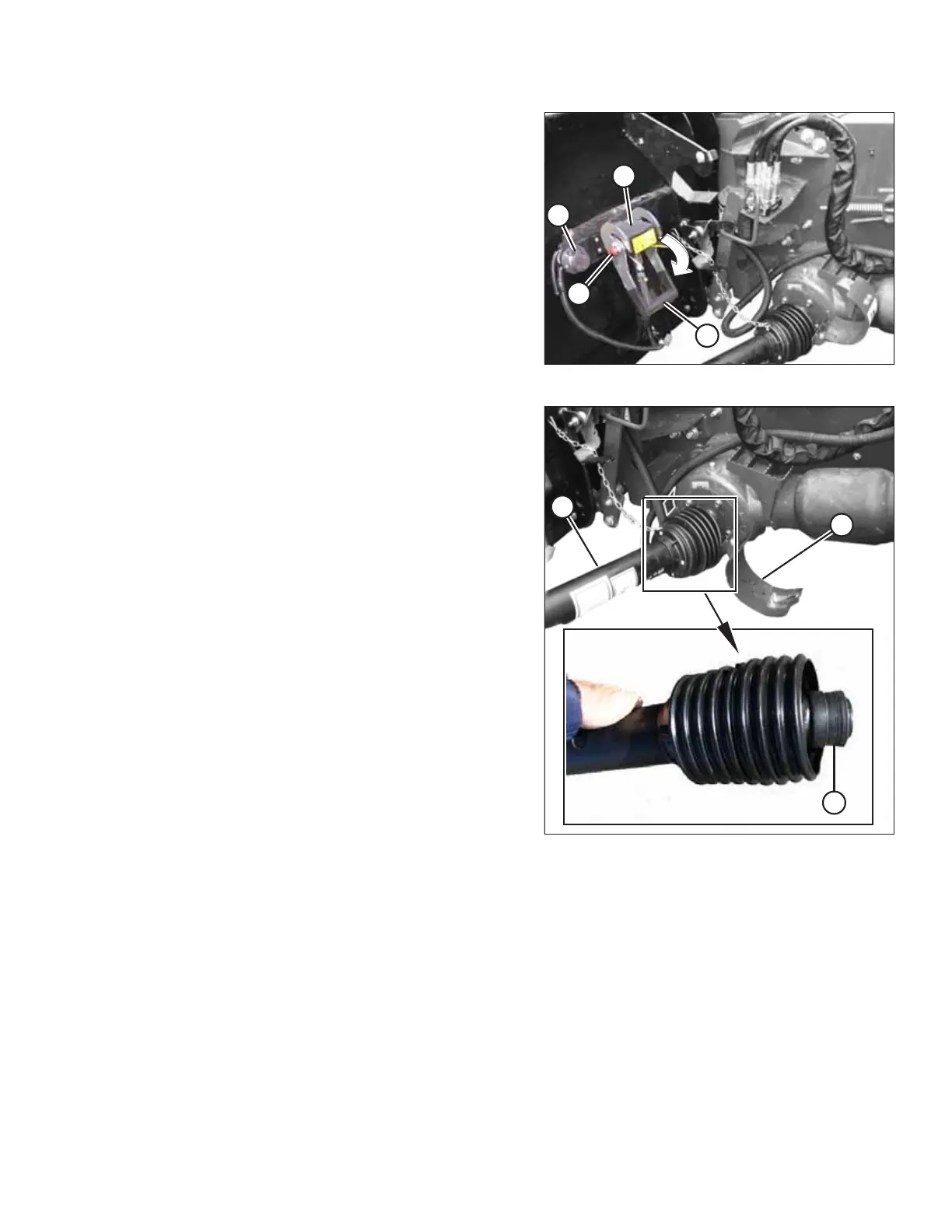

Figure 3.46: Locking Multicoupler
7. Close the cover on header electrical receptacle (A).
8. Push handle (B) on the header down into the storage
position until lock button (C) snaps out.
9. Close cover (D).
Figure 3.47: Detaching Driveline
10. Open driveshield (A) on the combine.
11. Pull back collar (B) on driveline (C), and remove the
driveline from the combine.
