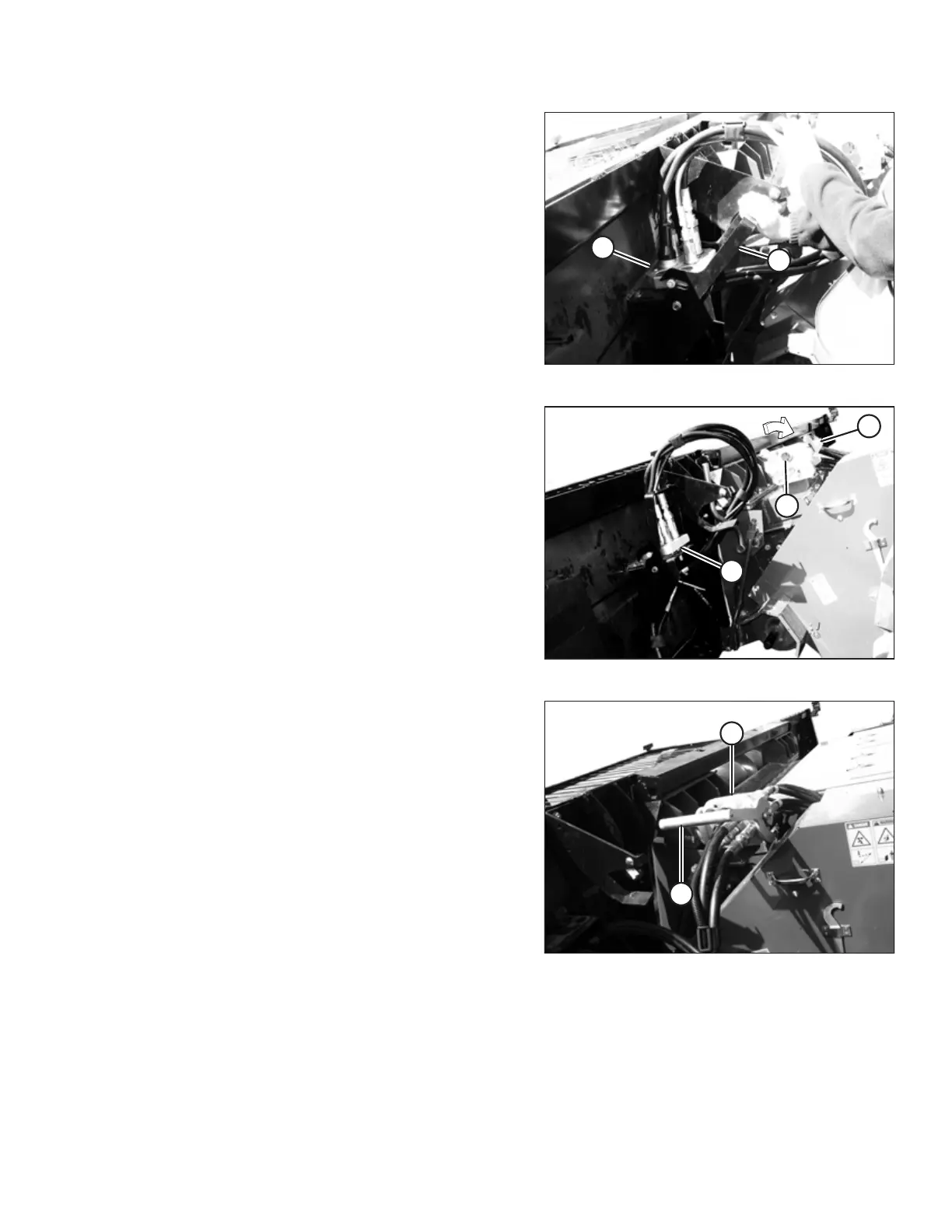

Figure 3.62: Coupler
11. Lower handle (A) to release coupler (B) from the header.
Figure 3.63: Opening Receptacle
12. Push handle (A) on the combine to the fully open position.
13. Clean the mating surfaces of coupler (B) and receptacle (C),
if necessary.
Figure 3.64: Coupler
14. Position coupler (A) onto the combine receptacle, and pull
handle (B) to fully engage the coupler into the receptacle.
OPERATION
