215575 54 Revision B
$

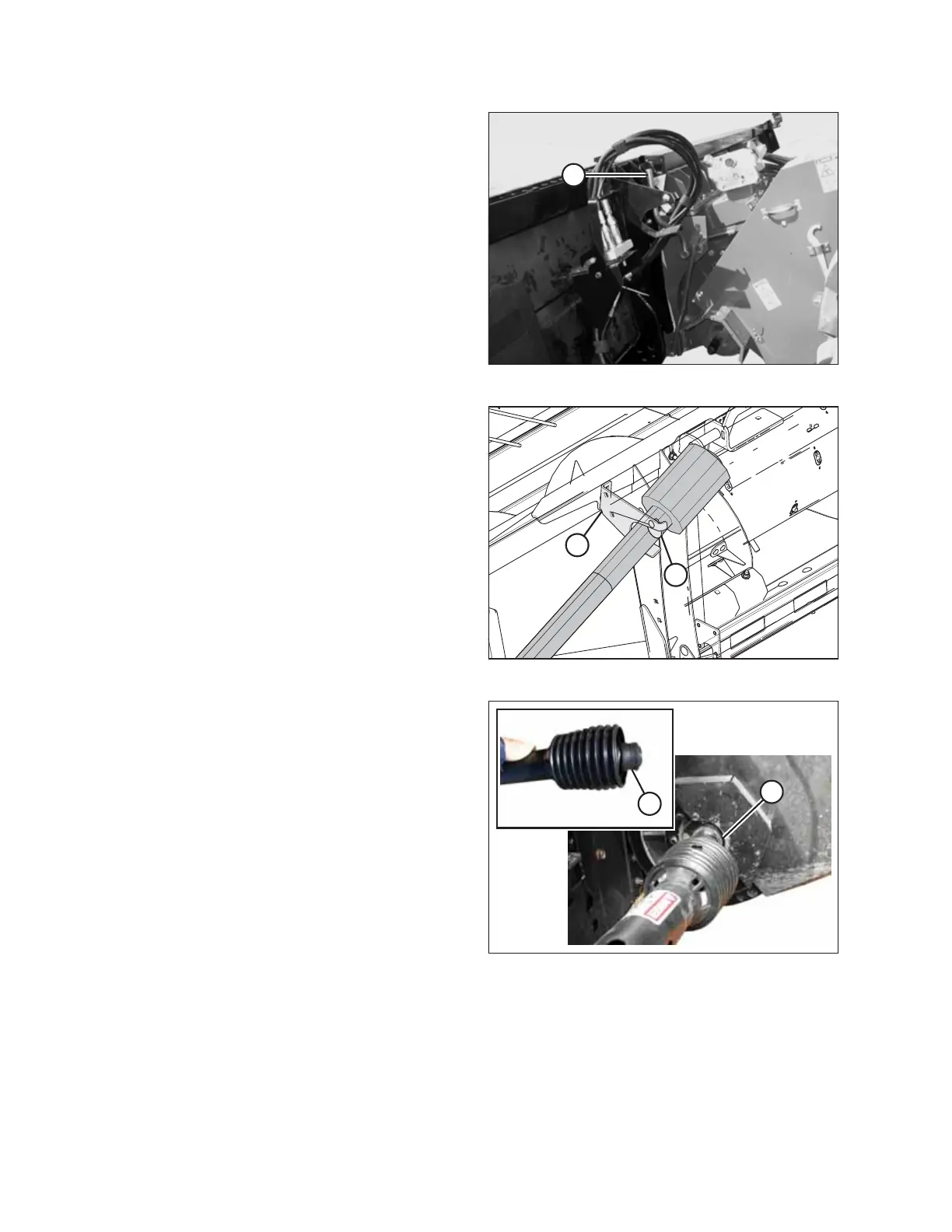

Figure 3.59: Engaging Hooks
8. Insert the hooks into the header by moving lever (A) from
the horizontal to the vertical position.
$
%
Figure 3.60: Driveline in Storage Position
9. Rotate disc (B) on header driveline storage hook (A), and
remove the driveline from the hook.
$
%
Figure 3.61: Connecting Driveline to Combine
10. Pull back collar (A) on the end of the driveline and push the
driveline onto combine output shaft (B) until the
collar locks.
OPERATION
