215575 74 Revision B
$
%

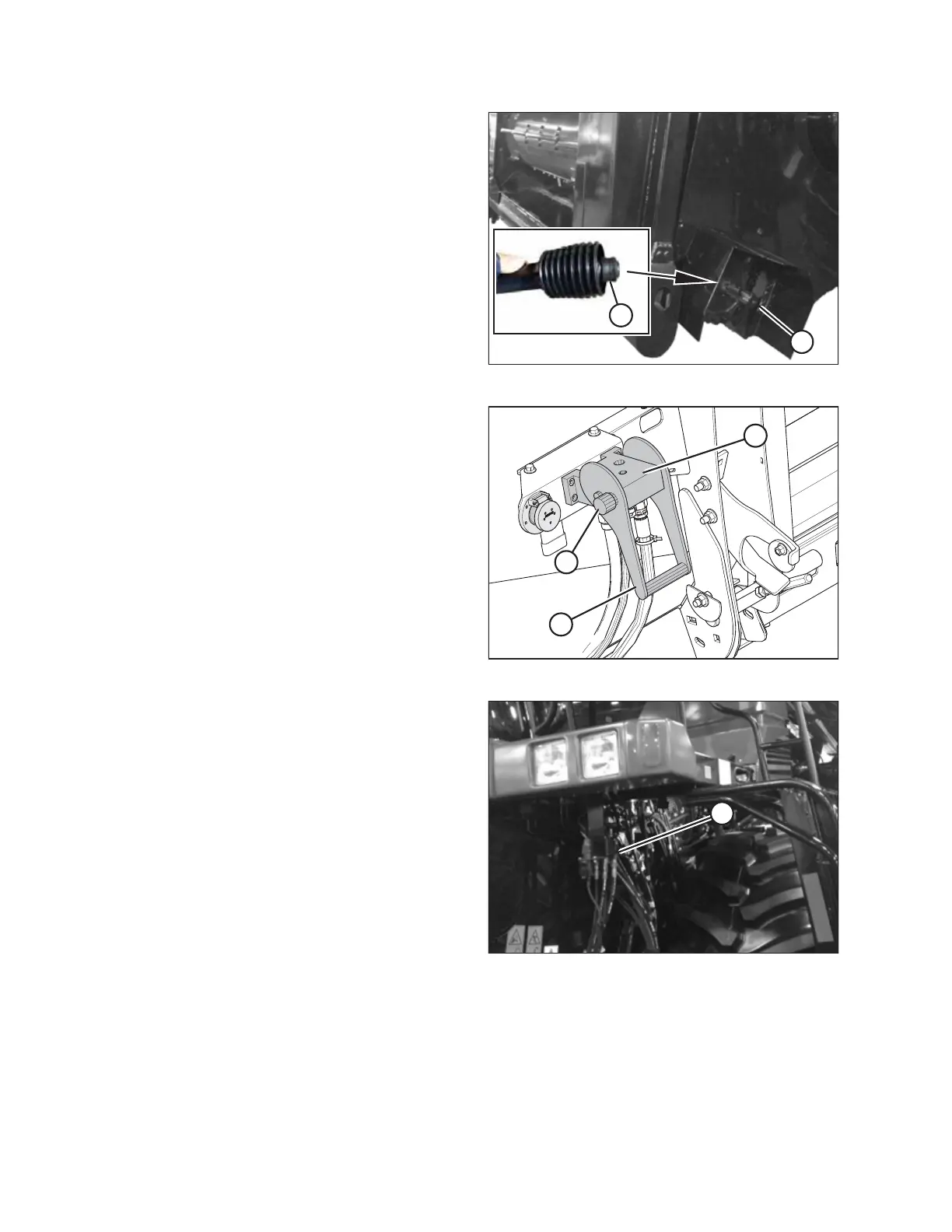

Figure 3.110: Driveline
20. Pull back collar (A) at the end of the driveline and push it
onto combine output shaft (B) until the collar locks.
$
%
&
Figure 3.111: Coupler Lock
21. Open cover (A) on the header receptacle.
22. Push in lock button (B) and pull handle (C) upward to the
fully open position.
$
Figure 3.112: Versatile Coupler
23. Remove coupler (A) from the combine and clean the mating
surfaces.
OPERATION
To Next Page
