215575 73 Revision B

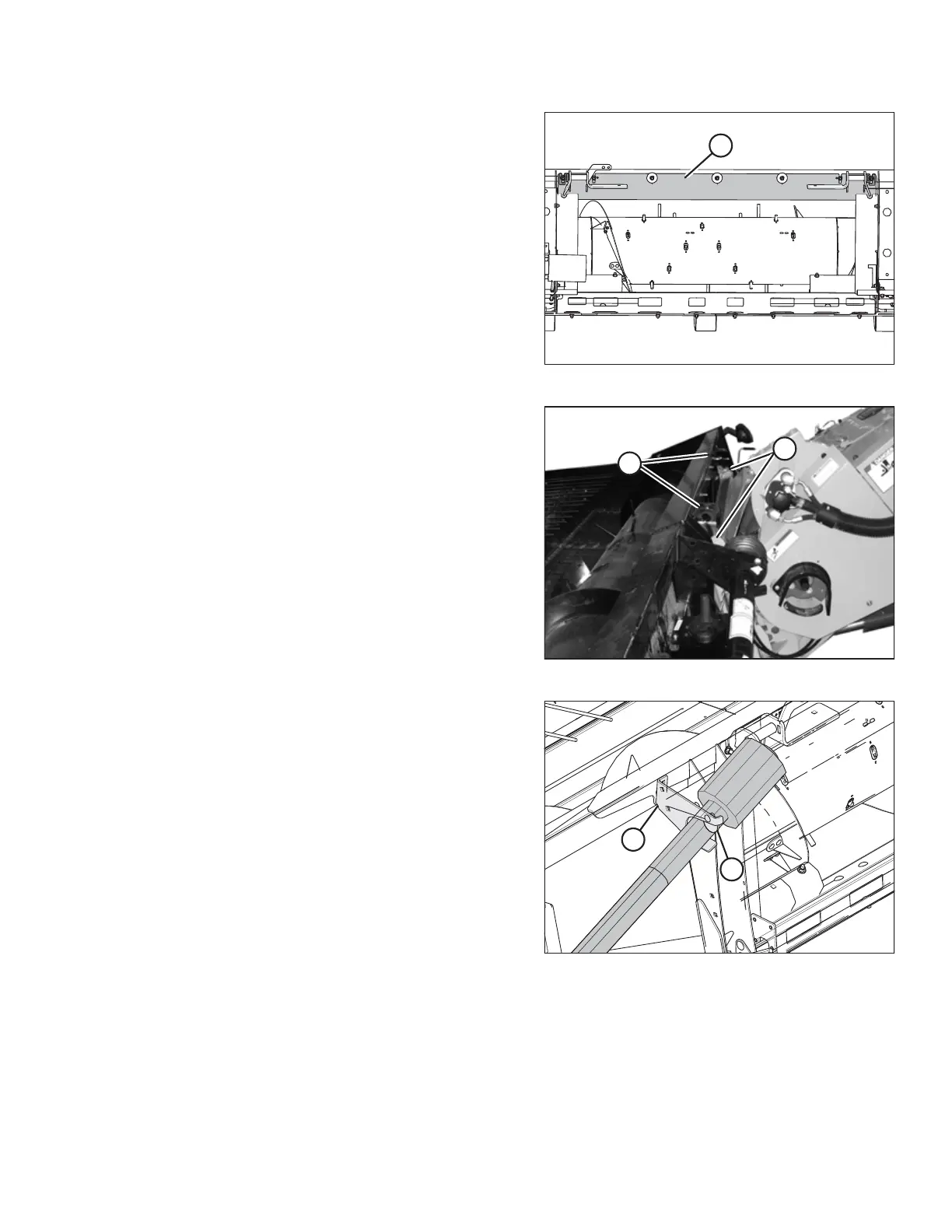

Figure 3.107: Top Beam — Rear View
14. Move support channel (A) according to the measurement
made in Step 8, page 72 to align the locking pin with the
feeder house receptacle. For instructions, refer to Step 6,
page 71.
15. Tighten all the bolts.
16. Start the engine.
Figure 3.108: Picking up Header
17. Raise the feeder house to lift the header, ensuring that
posts (A) are properly engaged around header frame (B).
18. Shut down the engine, and remove the key from
the ignition.
Figure 3.109: Driveline in Storage Position
19. Rotate disc (B) on header driveline storage hook (A), and
remove the driveline from the hook.
OPERATION
