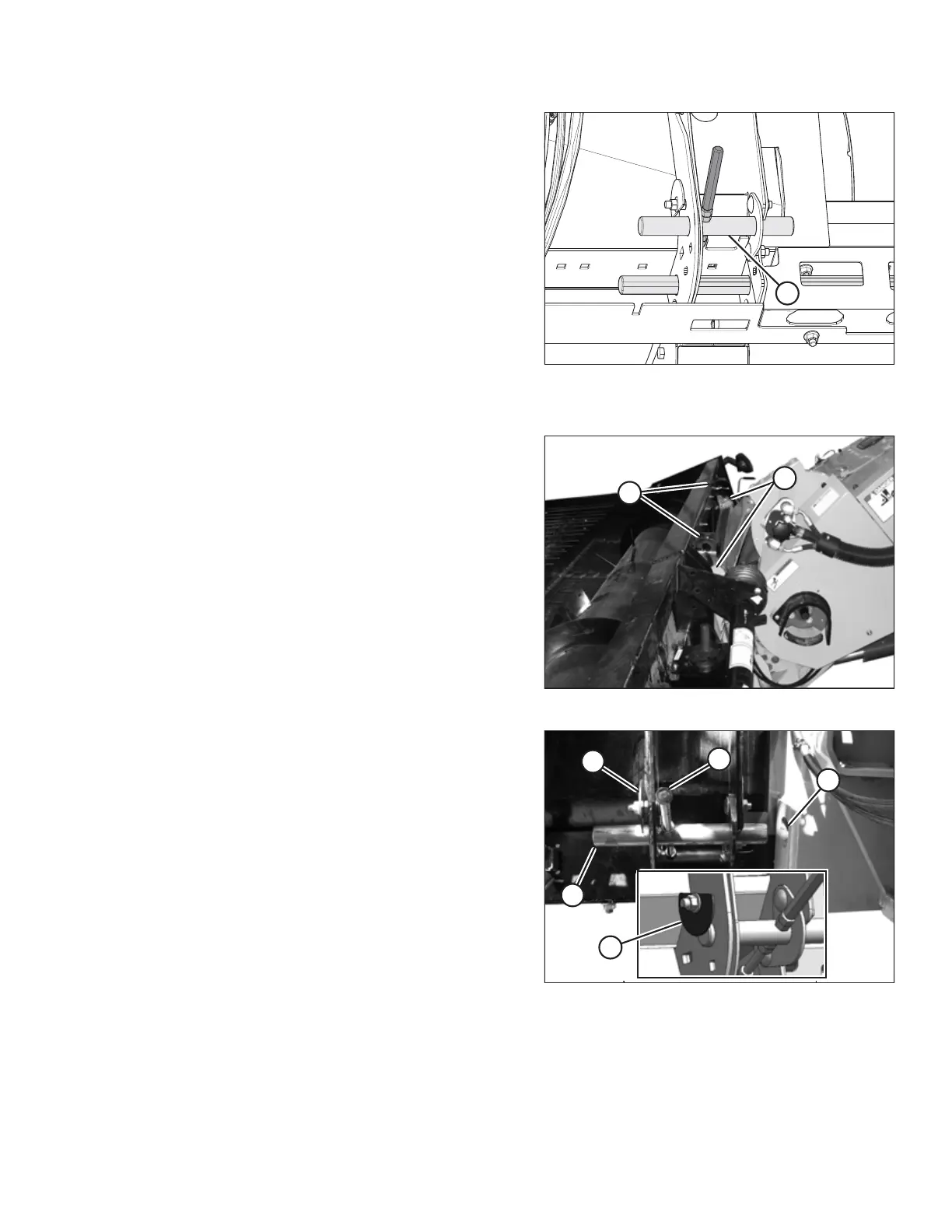

Figure 3.101: Locking Pins Retracted
1. Check that pins (A) at the lower corners of the header
opening are retracted.
2. Start the engine.
Figure 3.102: Picking up Header
3. Drive the combine slowly up to the header until feeder
house posts (A) are directly under header top brackets (B).
4. Raise the feeder house to lift the header, ensuring that
posts (A) are properly engaged around header frame (B).
5. Position the header slightly off the ground, stop the engine,
and remove the key from the ignition.
Figure 3.103: Feeder House Lock
6. Grasp handle (A) and slide pin (B) into feeder house
receptacle (C) until pin stop (D) drops down to lock the pin
as shown in the inset illustration. Ensure that the pin is
engaged on the opposite side of the feeder house.
7. If pin (B) does not align with feeder house receptacle (C), or
if the header pan and the bottom of feeder house opening
are not properly aligned, you can reposition the top beam
by performing Step 8, page 72 to Step 15, page 73.
NOTE:
If the pin aligns with feeder house receptacle (C), proceed
to Step 19, page 73.
