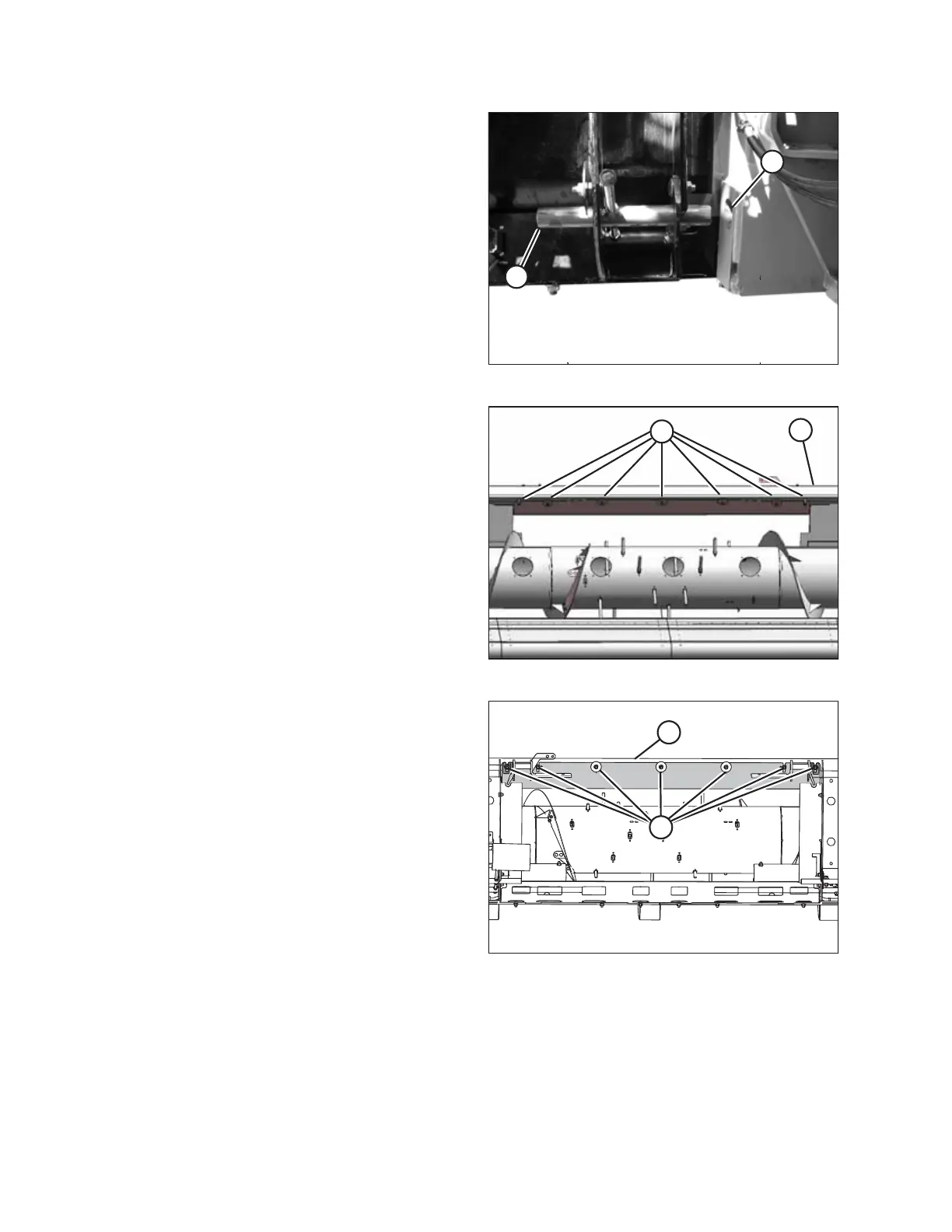

Figure 3.104: Feeder House Lock
8. Measure the misalignment between pin (A) and feeder
house receptacle (B).
9. Start the engine.
10. Lower the header to the ground until the feeder house
disengages from the top beam.
11. Shut down the engine, and remove the key from
the ignition.
$
%
Figure 3.105: Top Beam — Front View
12. Loosen seven bolts (A) along top beam (B) on the auger
side of the header.
$
%
Figure 3.106: Top Beam — Rear View
13. Loosen seven bolts (A) along top beam (B) on the back side
of the header.
