215575 76 Revision B
$
%
&

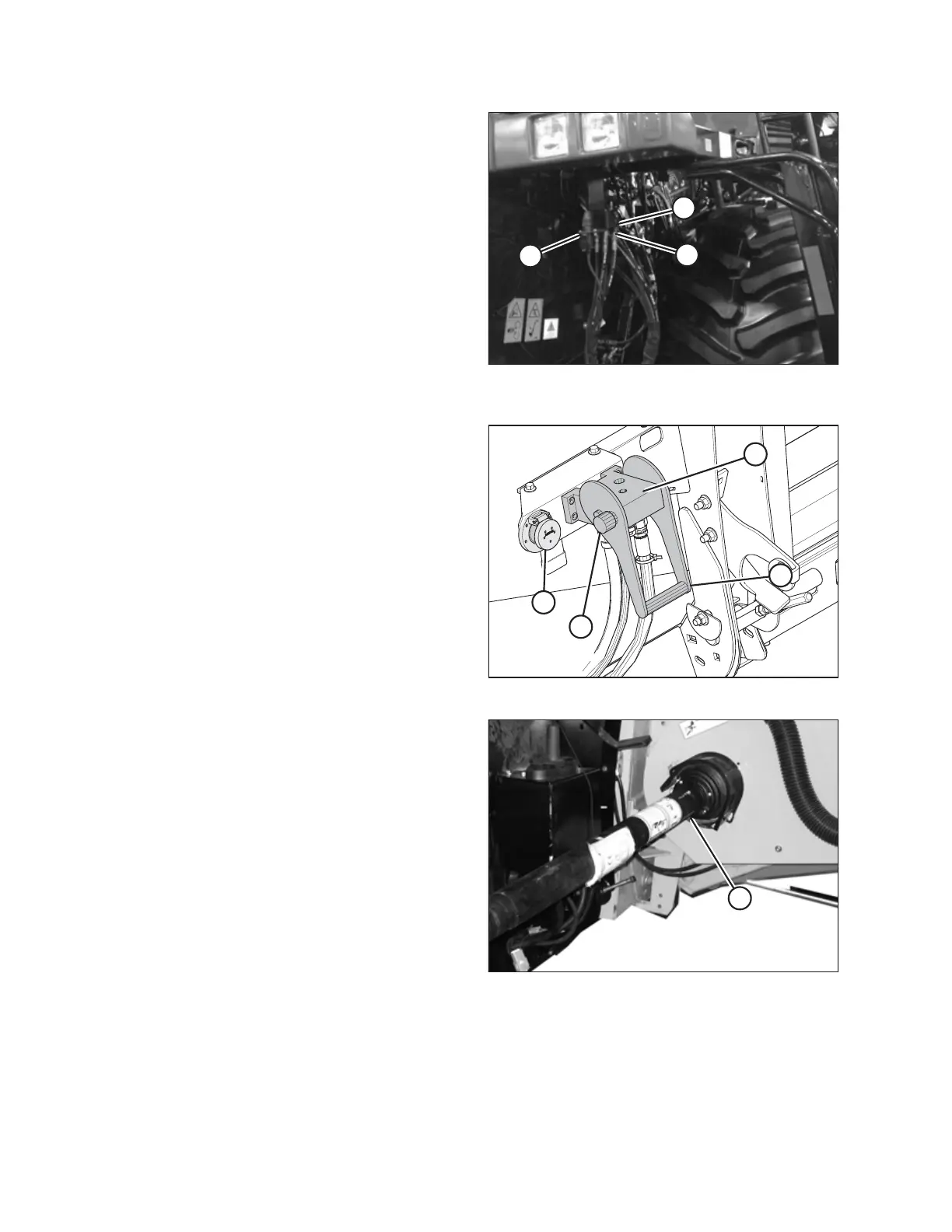

Figure 3.115: Coupler and Electrical Connector
Storage Location
5. Position coupler (A) onto storage plate (B) on the combine.
6. Disconnect the electrical connector from the header, and
place in storage cup (C) on the combine.
$
%
&
'
Figure 3.116: Locking Multicoupler
7. Close cover (A) on the header hydraulic receptacle, and
cover (B) on the electrical receptacle.
8. Push handle (C) down into the storage position until lock
button (D) snaps out.
$
Figure 3.117: Detaching Driveline
9. Pull back the collar on driveline (A) and remove the
driveline from the combine.
OPERATION
