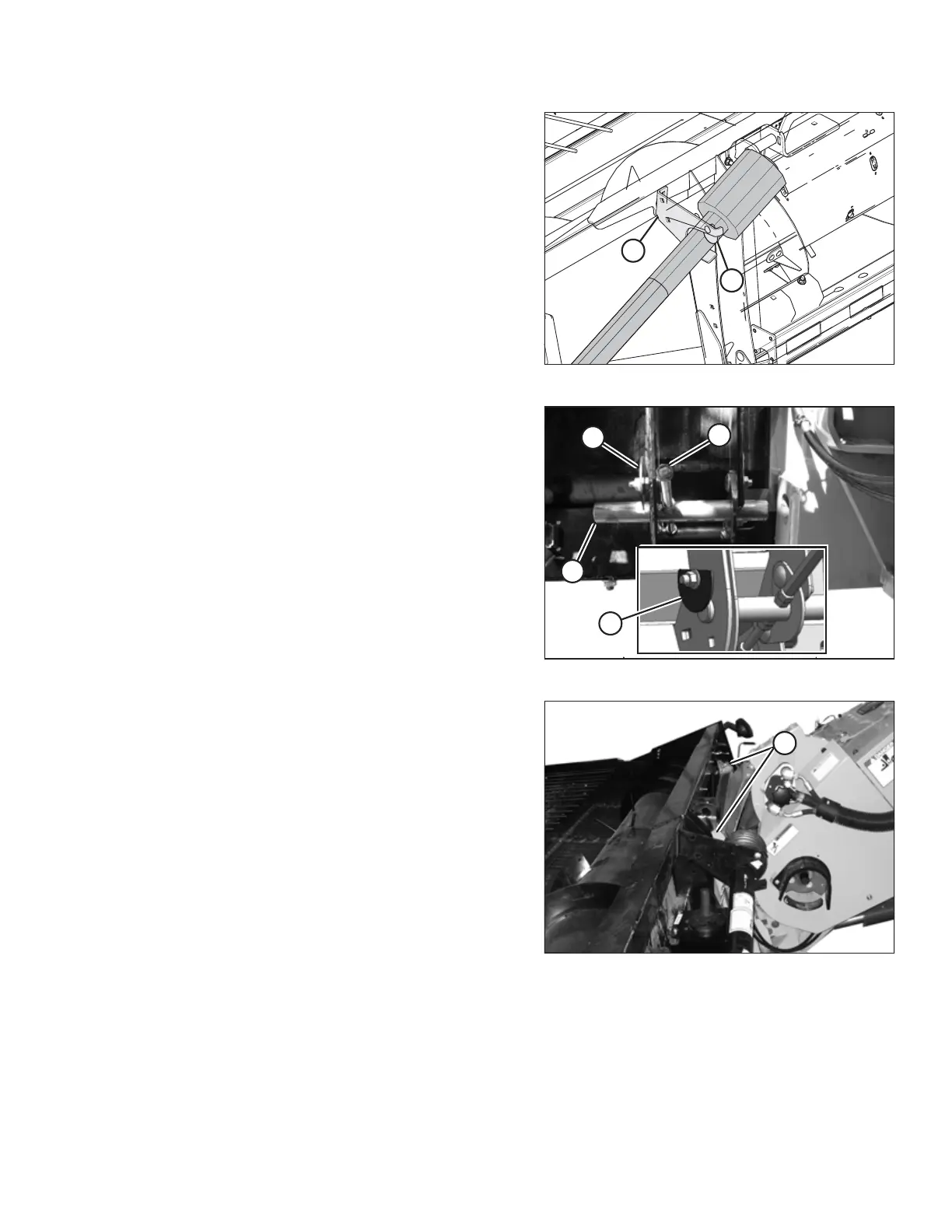

Figure 3.118: Driveline
10. Slide the driveline into storage hook (A) on the header and
rotate disc (B) to secure the driveline.
Figure 3.119: Feeder House Lock
11. Rotate pin stop (C) from the lowered position as shown in
the inset illustration, and disengage pin (B) from the feeder
house using handle (A).
Figure 3.120: Disengaging Header
12. Start the combine and lower the header to the ground until
feeder house posts (A) disengage from the header.
13. Slowly back the combine away from the header.
