4.6.14.2 Selecting the status LED and transfer rate

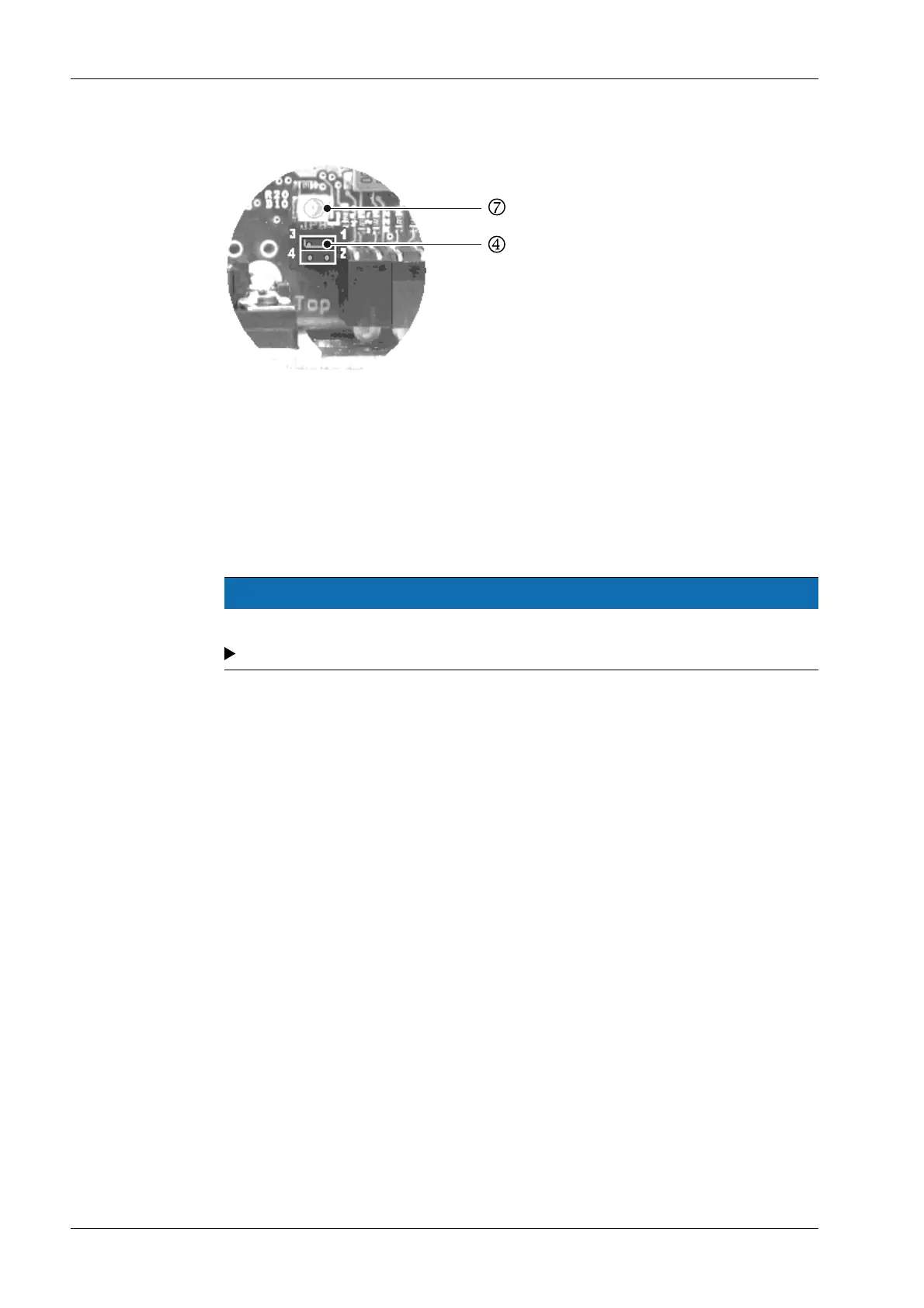

LED ⑦ lights up when the operating voltage is applied.
The transfer rate is selected using the 2-pole jumper ④.
- 3 — 1 = 2 Mbit/s
- 4 — 2 = 500 kbit/s
The selection is saved only by switching on the supply voltage.
4.6.14.3 Connection diagram for a master with three slaves
NOTICE
At bus "OUT" ③③, pins 5 and 9 must be bridged if another slave follows.
See connection diagram.
X3 Process Indicator PR 5410 4 Device installation
EN-104 Minebea Intec
