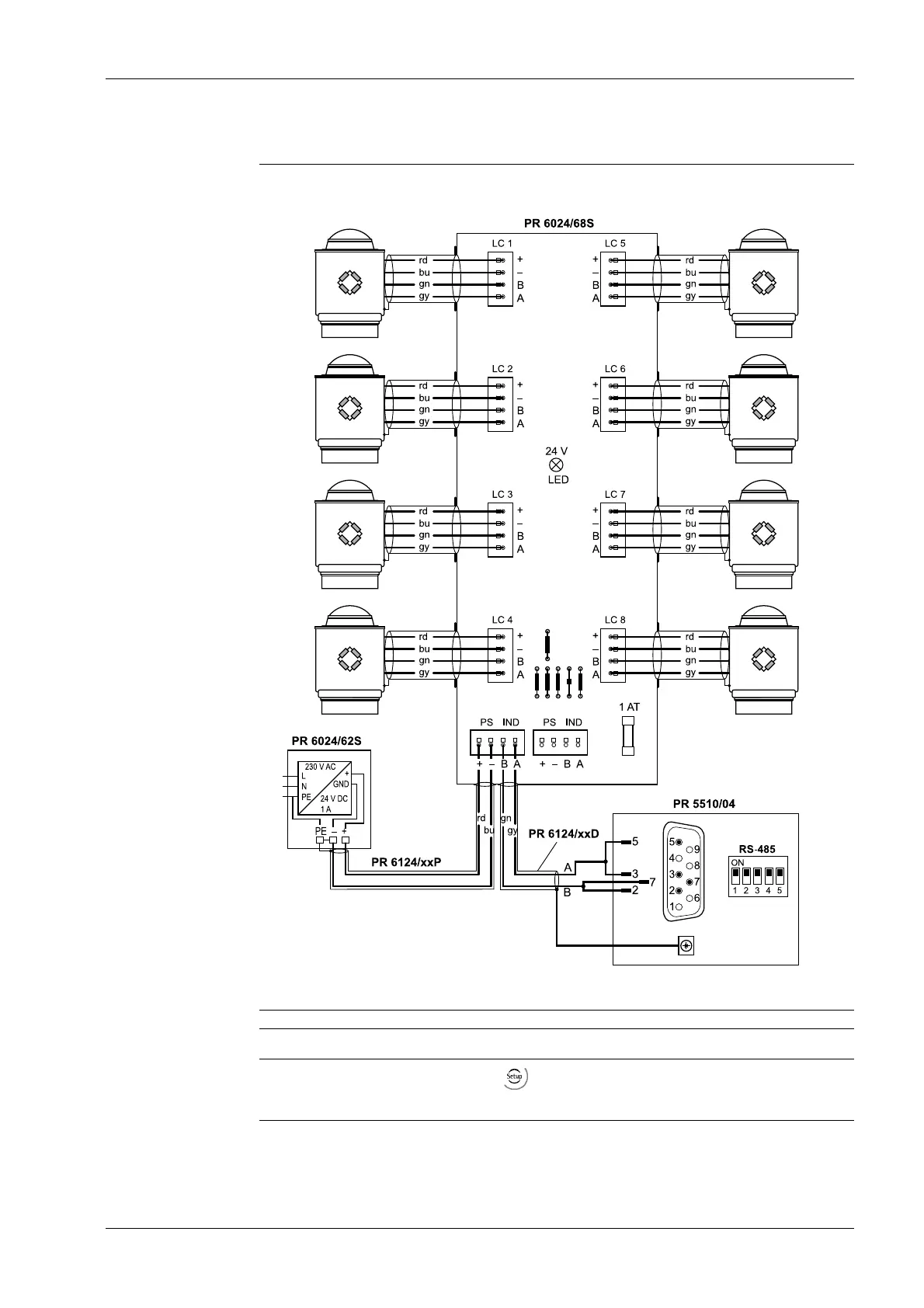

Connection example

PR 5410 switch settings PR 5410 configuration

ON: S1, S2, S3, S4, S5

OFF: …

- [Serial ports parameter] - [xBPI-Port] - [Slot 1/

2 RS485]

4 Device installation X3 Process Indicator PR 5410

Minebea Intec EN-69
