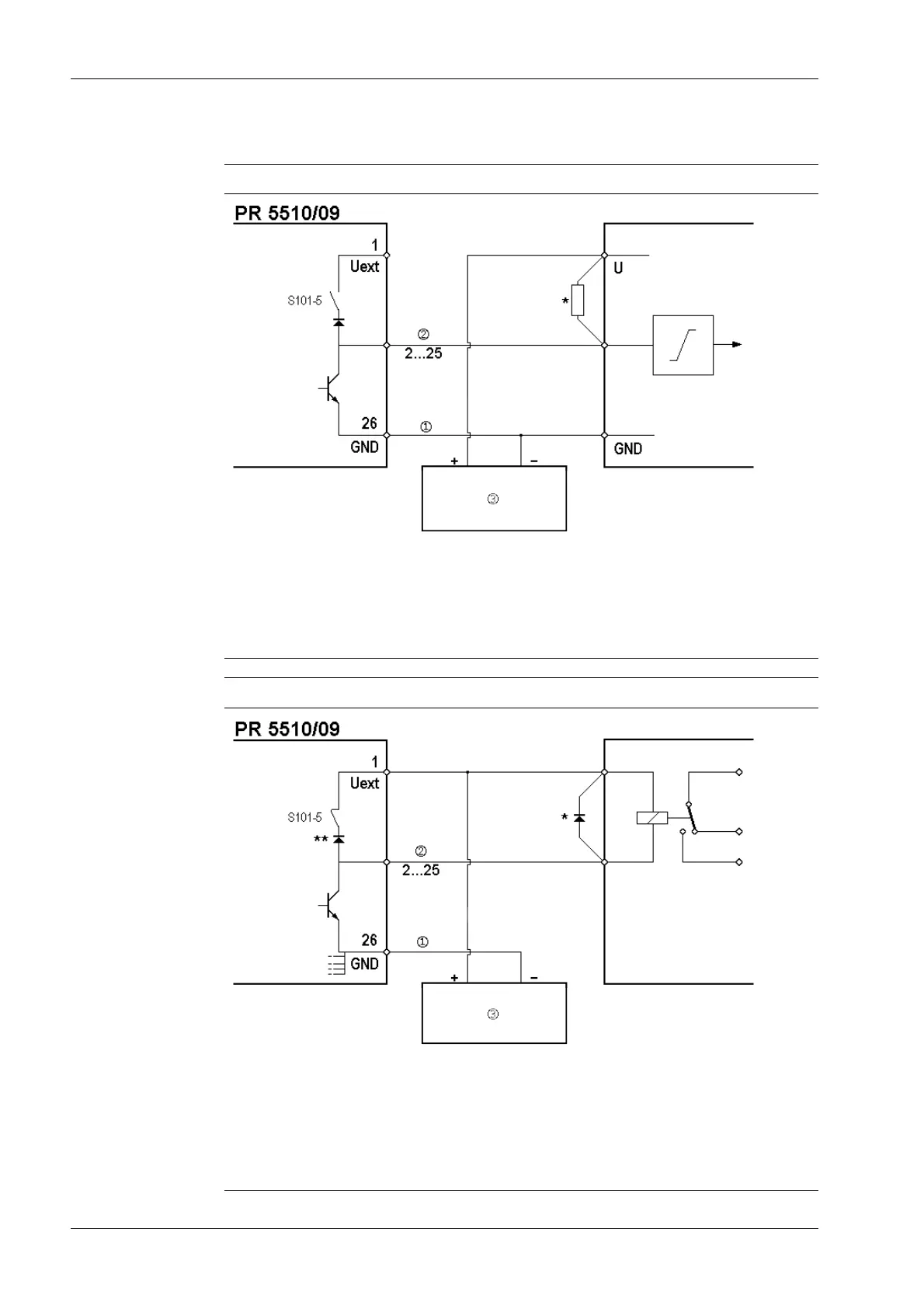

Output circuitry
Voltage output
① common reference potential
② outputs
③ supply unit U
DC
= 24 V 0.5 A
* The load resistance must be 2.2 kΩ/1 kΩ with 24 V/5 V.
The internal free-wheel diode is not activated: S101-5 = OFF
Current output
① common reference potential
② outputs
③ supply unit U
DC
= 24 V 0.5 A
Recommendation:
* additional external free-wheel diode
** additional internal free-wheel diode, only for very small inductive loads
X3 Process Indicator PR 5410 4 Device installation
EN-88 Minebea Intec
