NOTICE (POWER SUPPLY AND CIRCUIT BREAKER)
Since iPASOLINK EX/A itself does not have a power on/off switch, it requires a
circuit breaker or shut-off function externally. See the following for reference:
The cable should be shielded to keep operating in conformity with EMC standards.

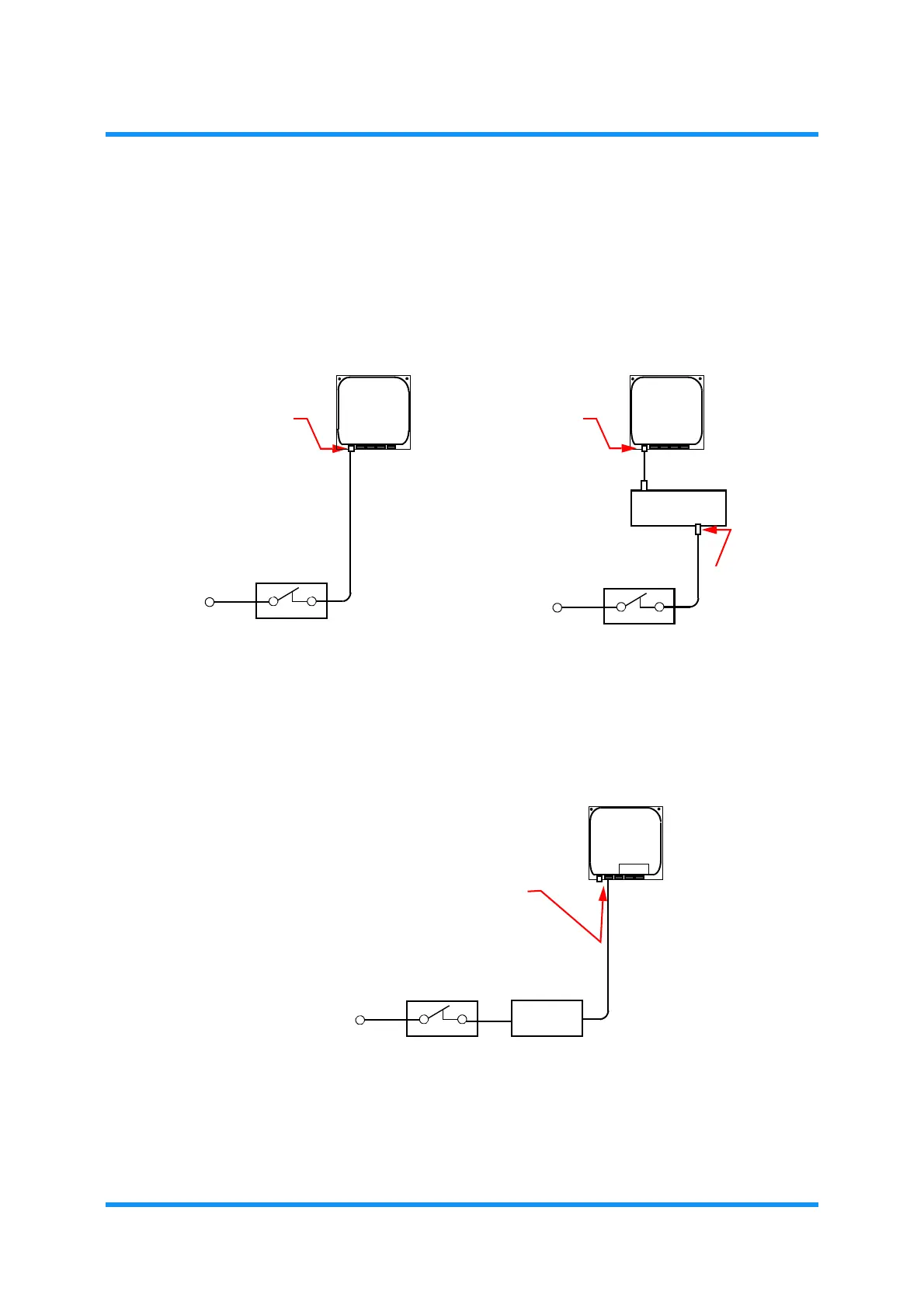

➀ Using DC IN (Power) Port
DC –48V
➁ Using LAN (PoE) Port
PoE
EX/A
EXTERNAL CIRCUIT BREAKER
EXTERNAL
POWER
INJECTOR
CIRCUIT
BREAKER
LAN CABLE
POWER CABLE
EX/A
Use STP (shielded twisted pair) cable.
DC –48V
EXTERNAL CIRCUIT BREAKER
AC POWER CABLE
AC POWER
MODULE
POWER CABLE
AC 100 V to 240 V
EX/A
➁ Using AC Power Module
(2-Core Shielded Cable of
14 to 16 AWG)
(2-Core Shielded Cable of
14 to 16 AWG)
