8-16 Set ETH Function
GGS-000547-01E iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING
5. When completed, click the OK button.
6. Information dialog box appears. Click the OK button to proceed.

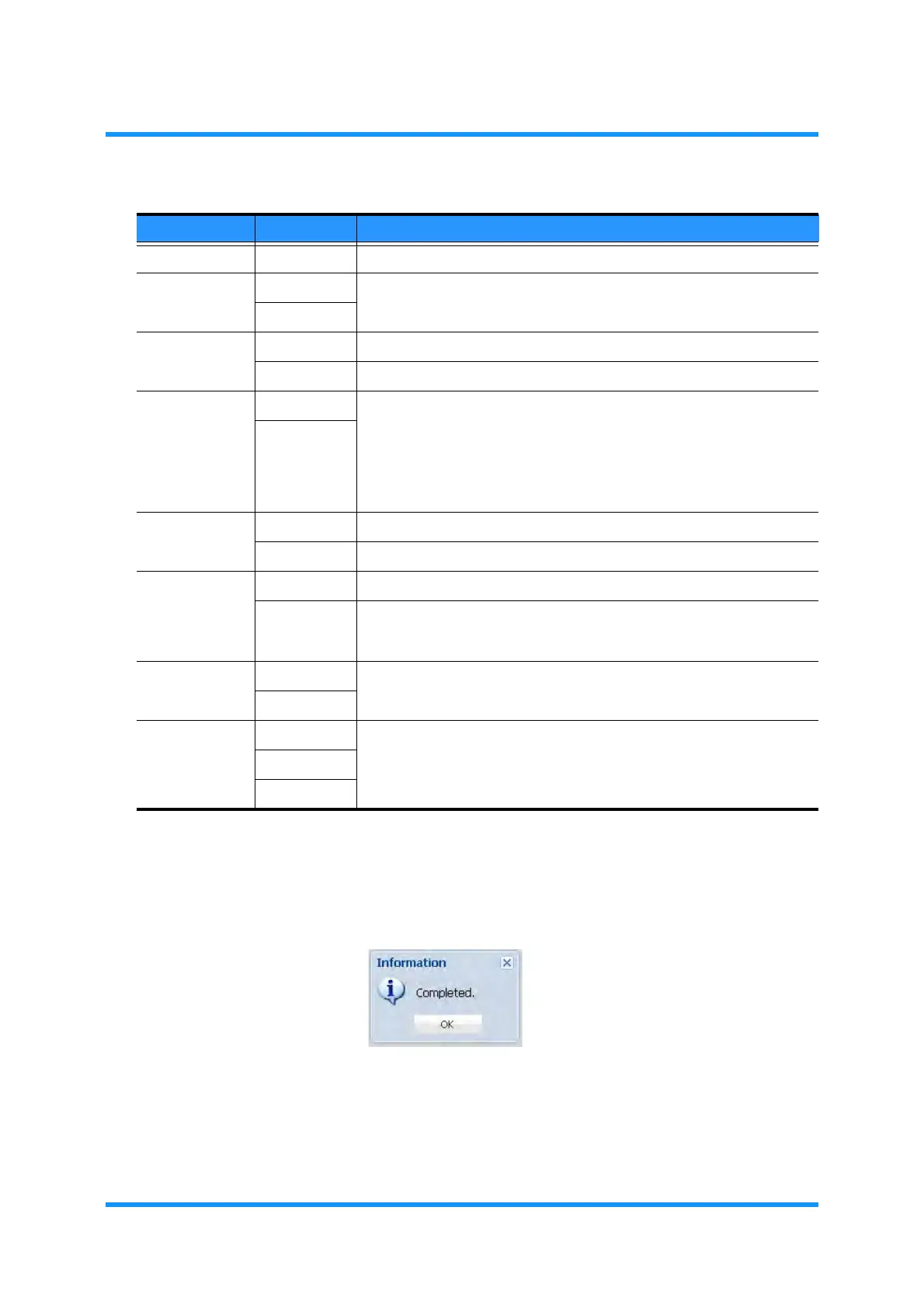

Figure 8-15 Information Dialog Box
7. The ETH Port Setting window updates the information. Verify the displayed
parameters.
Duplex Full Fixed to Full duplex mode only.
MDI and MDIX MDI Specifies the port media type. This option is disabled when the Speed
option selects AUTO.
MDIX
Flow Control Enable Enables the Flow Control function.
Disable Disables the Flow Control function.
Sync ETH Enable Sets to Enable or Disable the Synchronous Ethernet.
NOTE: When the RJ45 port supporting the 1Gbit/s enables Sync ETH,
specifying this port to the Equipment Clock Reference forcibly assigns
and fixes this port to Slave. In this circumstance, if the opposing site
has the same settings as well, the Ethernet link will not be able to get
established.
Disable
LLDP Usage Enable Selects to use LLDP.
Disable Selects not to use LLDP.
LLDP Mode Standard Enables to run the standard DP MAC.
Proprietary
MAC
Enable to run NEC proprietary LLDP MAC. This option is helpful to
locate an iPASOLINK where L2SW discarding standard LLDP frames is
in between two iPASOLINKs’ management ports.
ALS Usage Enable Sets to enable/disable the Automatic Laser Shutdown function. This
option is available for optical ports only.
Disable
ALS Interval 60 [s] Sets the delay time to release the port from the ALS state when the
alarm is cleared. [unit: second, default: 60 seconds]
180 [s[
300 [s]
Table 8-4 ETH Port Setting Parameters (2 of 2)
Parameter Value Description
