Port Type: Access

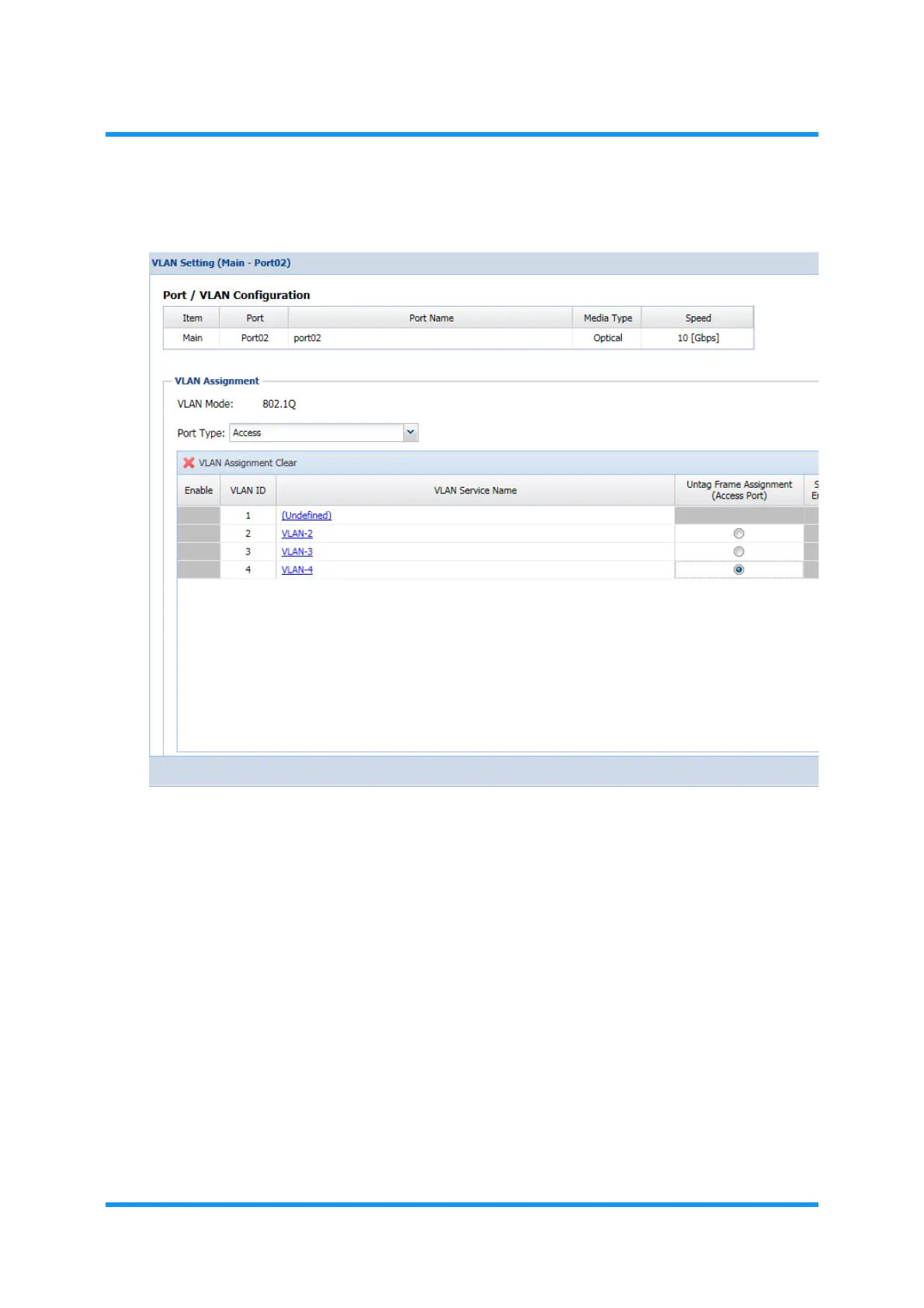

Figure 8-34 VLAN Setting Option Window — Access
Click a radio button of the target VLAN ID under the Untag Frame Assignment
(Access Port)
for an access port.
The untagged frames pass through the ports selected here.
Incoming tagged frames, except for those with matching VLAN IDs, are
discarded at the ports selected here.
