Set ETH Function 8-29
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
Port Type: Tunnel

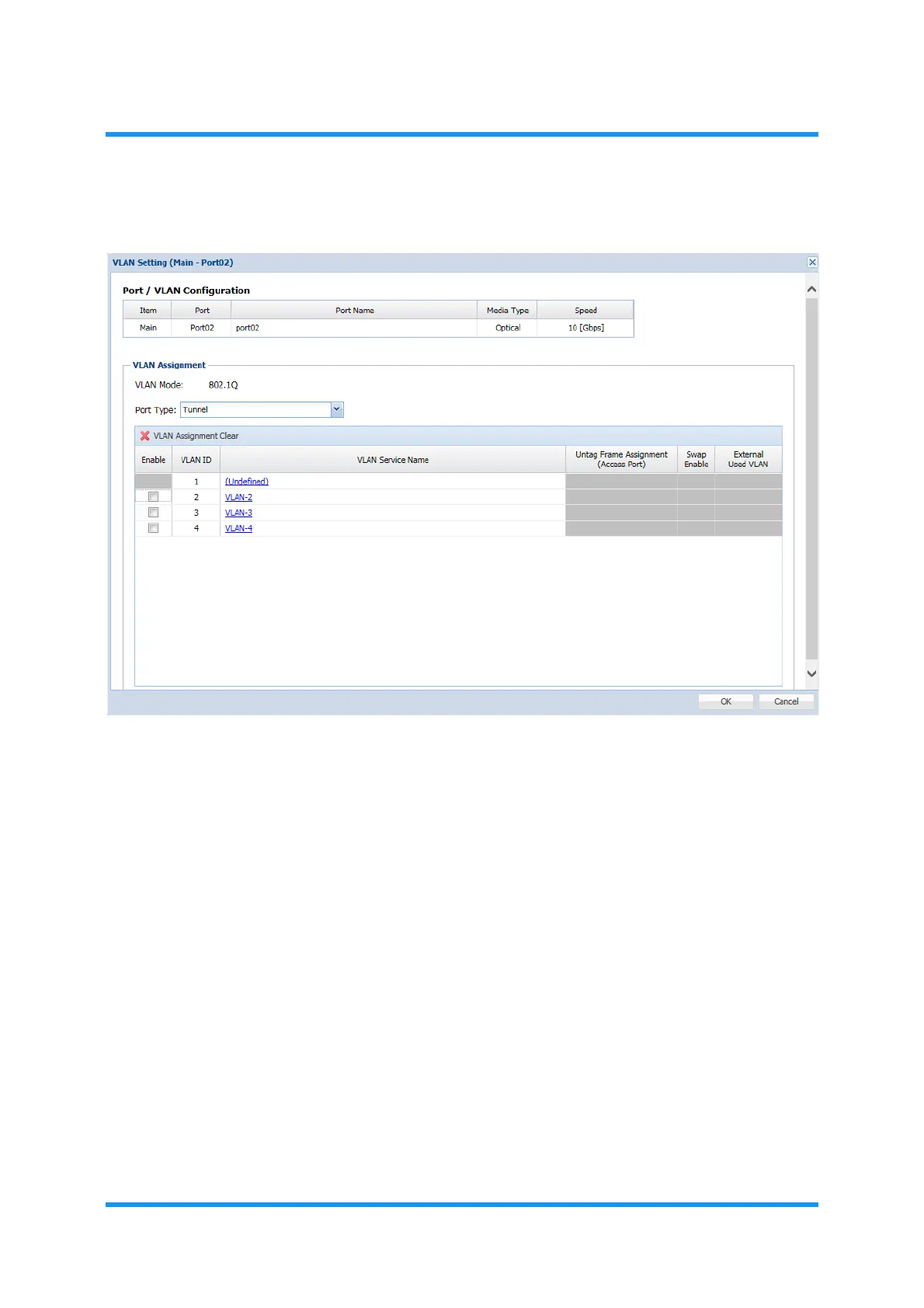

Figure 8-35 VLAN Setting Option Window — Tunnel
Tick the check box of the VLAN that is to configure the port type: Tunnel.
At the ports selected here, any frame types, either untagged or tagged with any
VLAN ID, are unconditionally tagged (Outer tag) with the VLAN ID, which is
checked in the list.
When the port is configured as Tunnel, all the check boxes in L2CP Transparency
windows are enabled.
To Next Page
