Port Type: Trunk

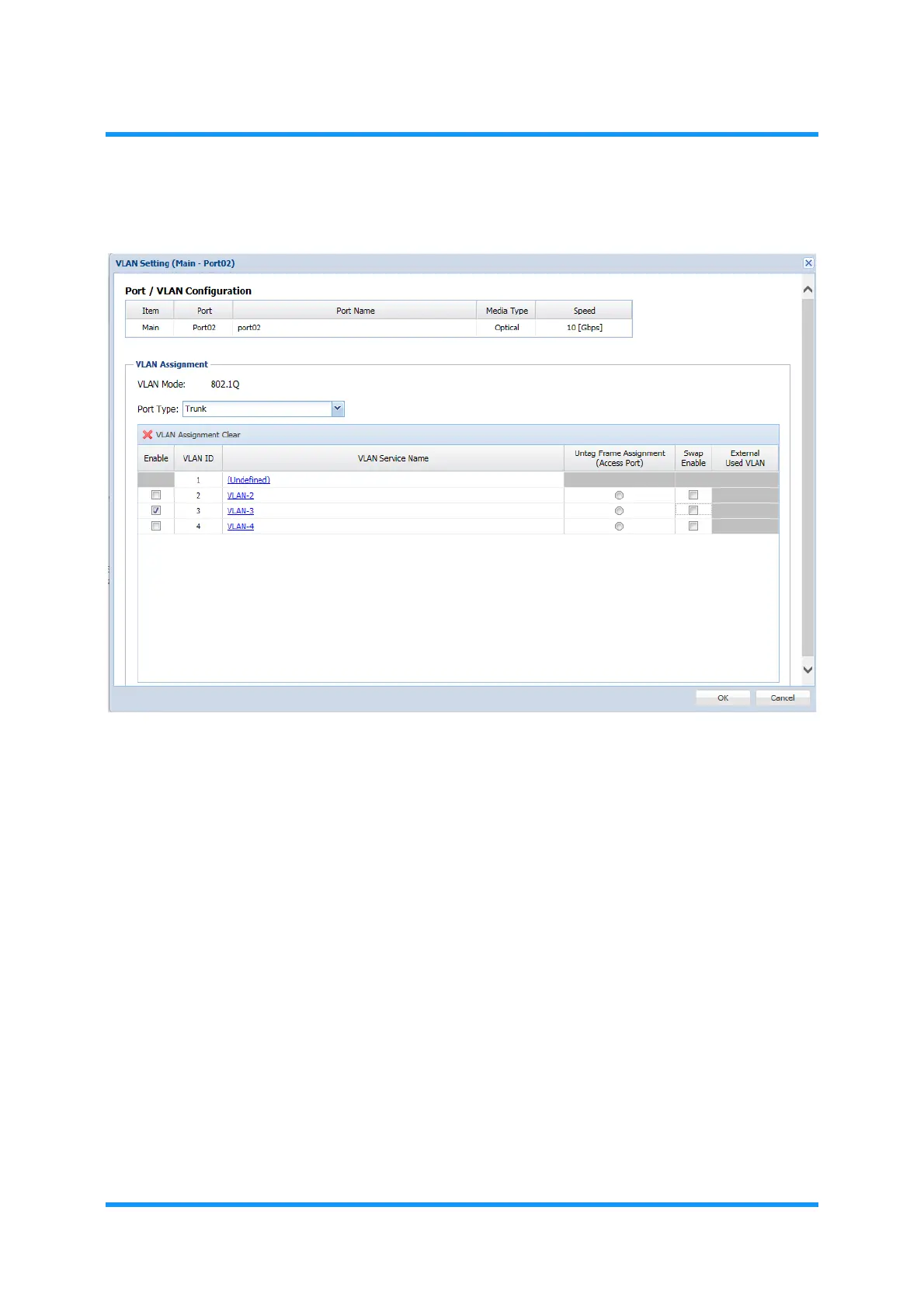

Figure 8-36 VLAN Setting Option Window — Trunk
Tick the check boxes of the VLANs that are to configure the port type: Trunk.
At the ports selected here, tagged frames with the VLAN IDs that are checked in
the list are allowed to pass through.
An untagged frame will be assigned with the VLAN ID of the selected VLAN in
Untag Frame Assignment column.
Other types of frames are discarded.
