CONNECT CABLES 5-5
iPASOLINK EX Advanced: INSTALLATION GGS-000546-01E

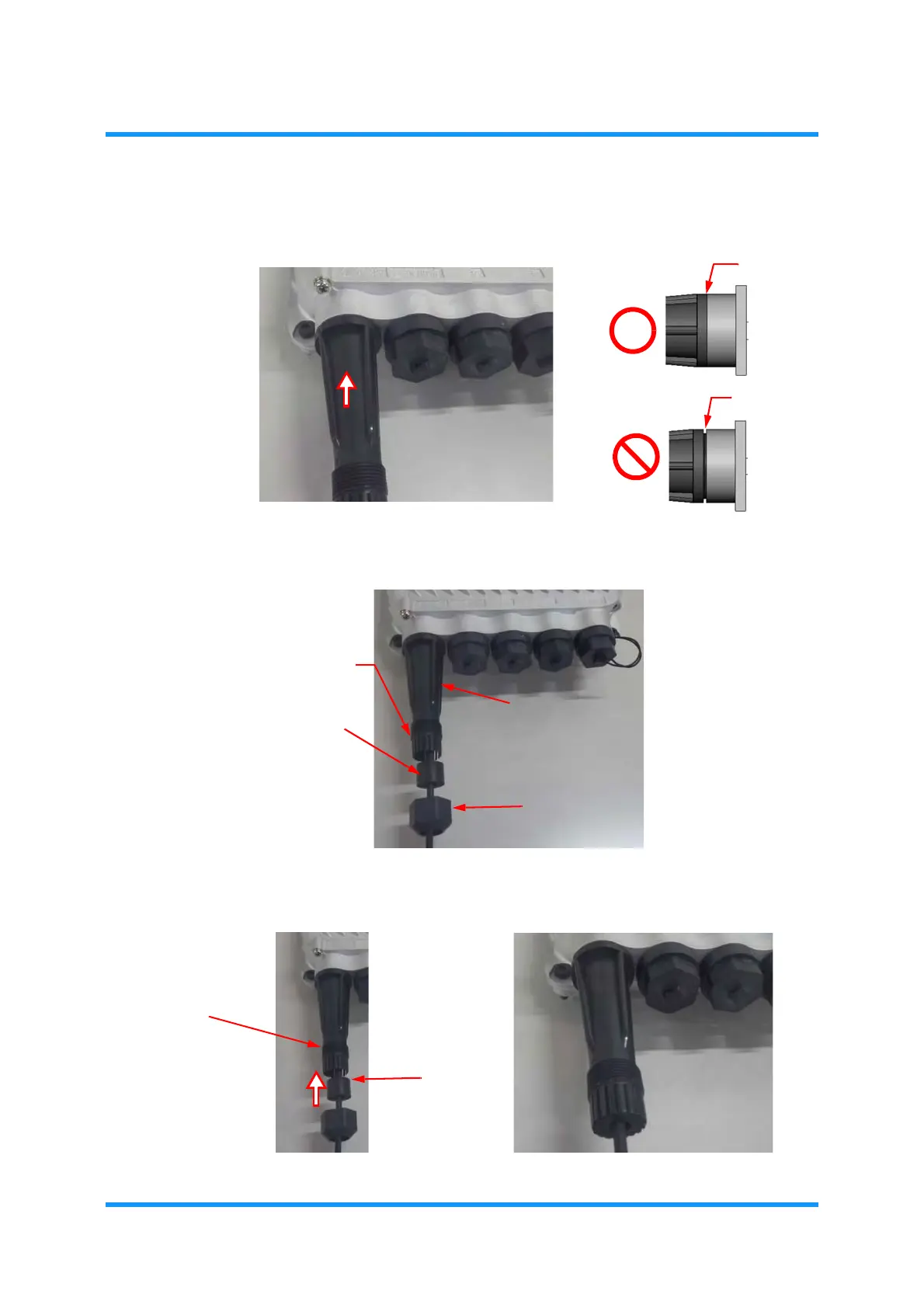

(2) Place and set the housing:
Figure 5-5 Place Housing
(3) Move the housing till the plug is fit in the shell..
Figure 5-6 Place Plug Shell
(4) Push the Bushing into the barrel.
Figure 5-7 Set Bushing into Barrel
HOUSING
no gap
gasket is
seen
BARREL
BUSHING WITH RIB
HOUSING
GLAND NUT
RIB
BARREL
Check that the bushing
is fully inserted within
the barrel end.
To Next Page
