8-108 Set ETH Function
GGS-000547-01E iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING
9. Assign the appropriate values, then click the Next button:

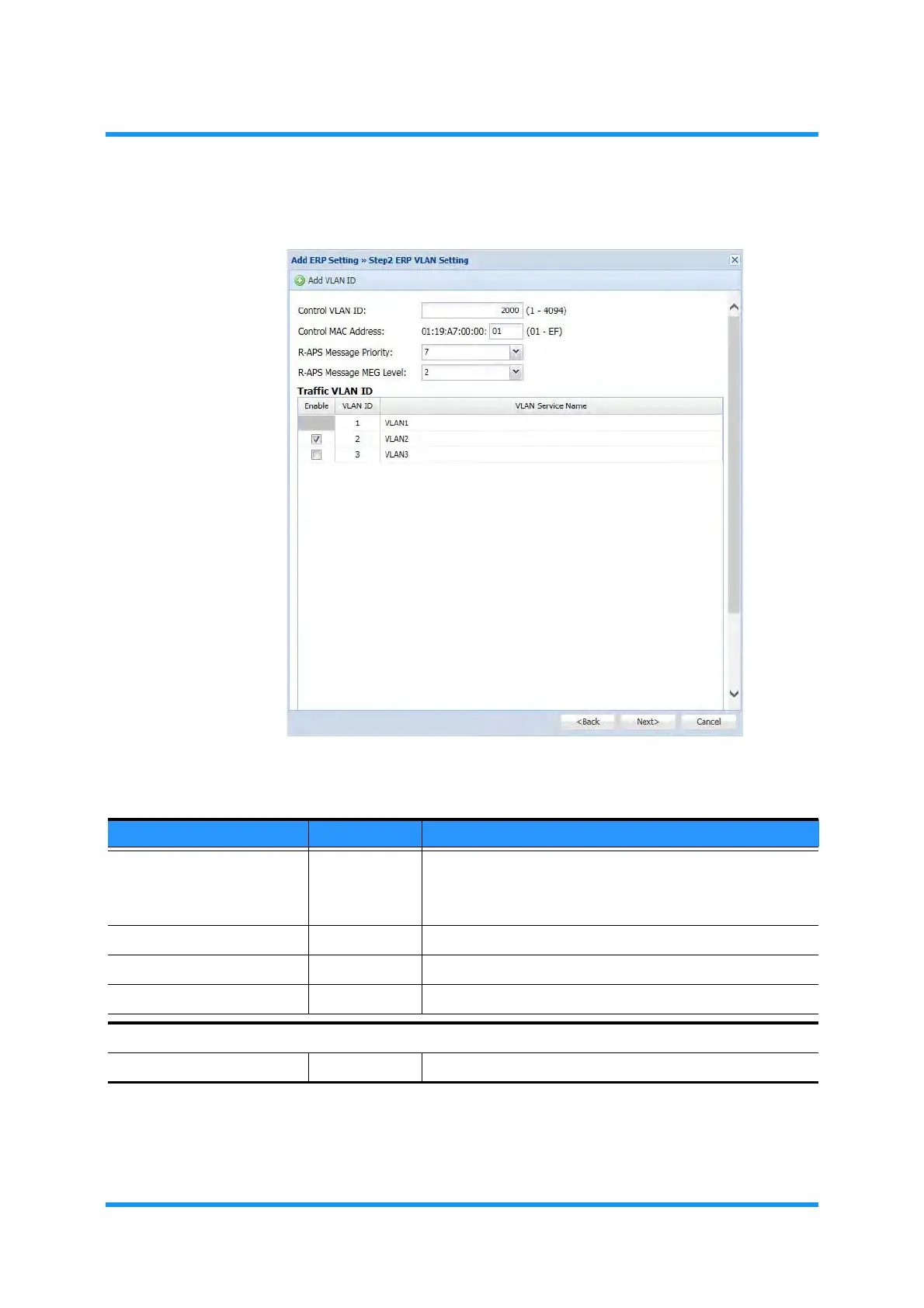

Figure 8-150 Step 2 ERP VLAN Setting Option Window
Table 8-27 Step 2 ERP VLAN Setting Parameters
Parameter Value Description
Control VLAN ID 1 to 4094 A VLAN ID is used for R-APS transmission. Control VLAN ID
for each Ring must be unique. To use Virtual Channels within
the Sub-Ring, this Control VLAN ID must be registered for
the Traffic VLAN ID of the Upper Ring.
Control MAC Address 01 to FF Specify the last two digits of the address.
R-APS Message Priority 0 to 7 VLAN CoS field of R-APS frame. [default: 7]
R-APS Message MEG Level 0 to 7 MEG level of R-APS message. [default: 7]
Traffic VLAN ID
Enable (check box) Tick the check box to enable the use of Traffic VLAN ID
To Next Page
