4. The Add LAG option window appears. Assign the LAG:

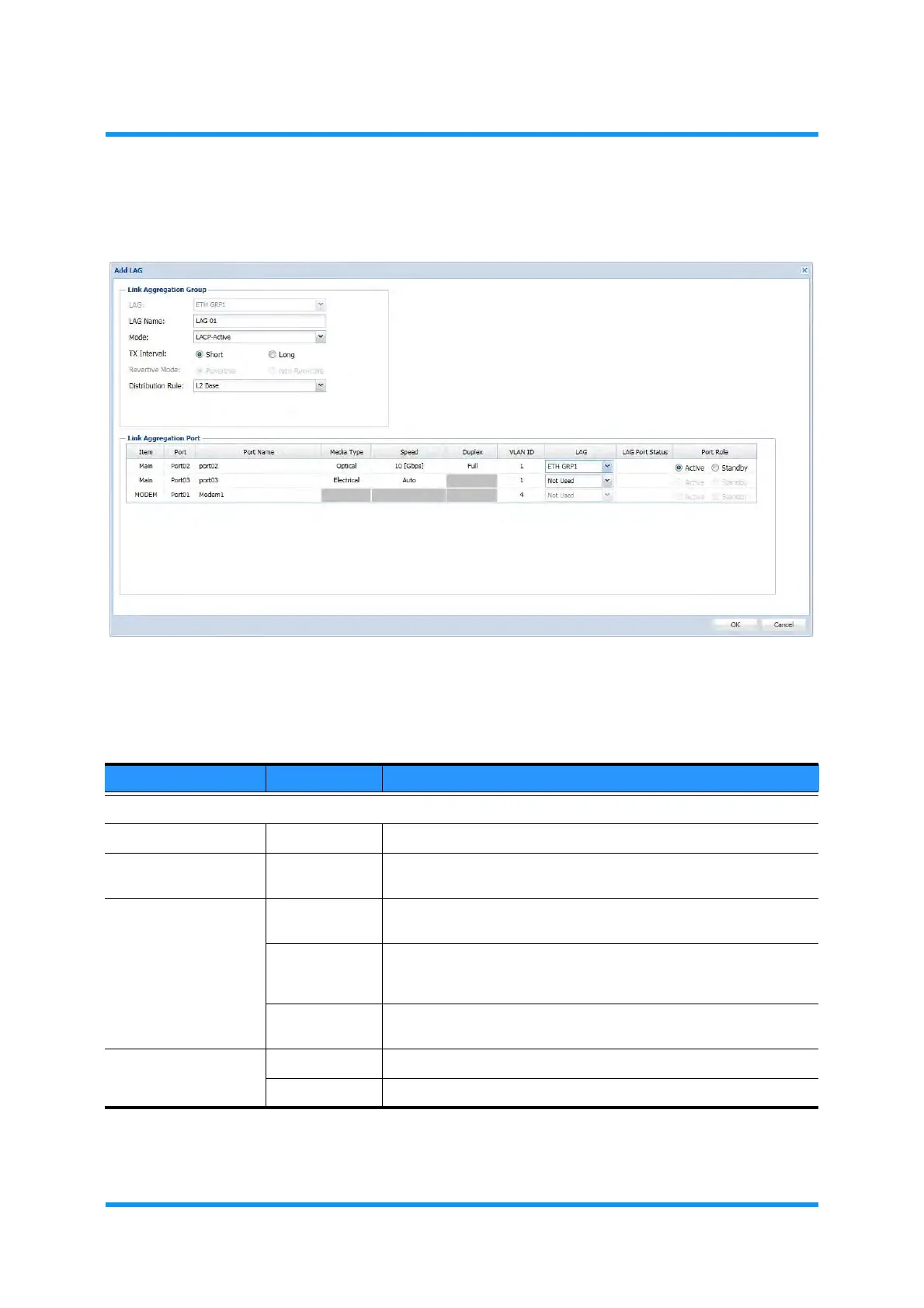

Figure 8-162 Add LAG Option Window
Table 8-29 Add LAG Option Parameters (1 of 2)
Parameter Value Description
Link Aggregation Group
LAG (read only) Indicates the type of registered ETH GRP.
LAG Name (text field) Enter the Link Aggregation Group name to apply. Valid value is 0 to
32 characters long.
Mode
[This option is for ETH
GRP only.]
LACP-Active Outputs frames along the configured links regardless of settings on
the other side. Selecting this value enables the TX Interval option.
LACP-Passive Outputs or not to output depending on the settings on the other side;
outputs frames if the other side’s control value is Active.Selecting
this value enables the TX Interval option.
Static Static operation mode using no LACP. Selecting this value enables
Revertive option.
TX Interval
[For LACP Mode only.]
Short Sets the an output interval of LACPDUs mode for one second.
Long Selects an output interval of LACPDUs mode for 30 seconds.
