Set ETH Function 8-117
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
5. When the parameters are specified, click the OK button.
6. Information dialog box appears. Click the OK button to proceed.

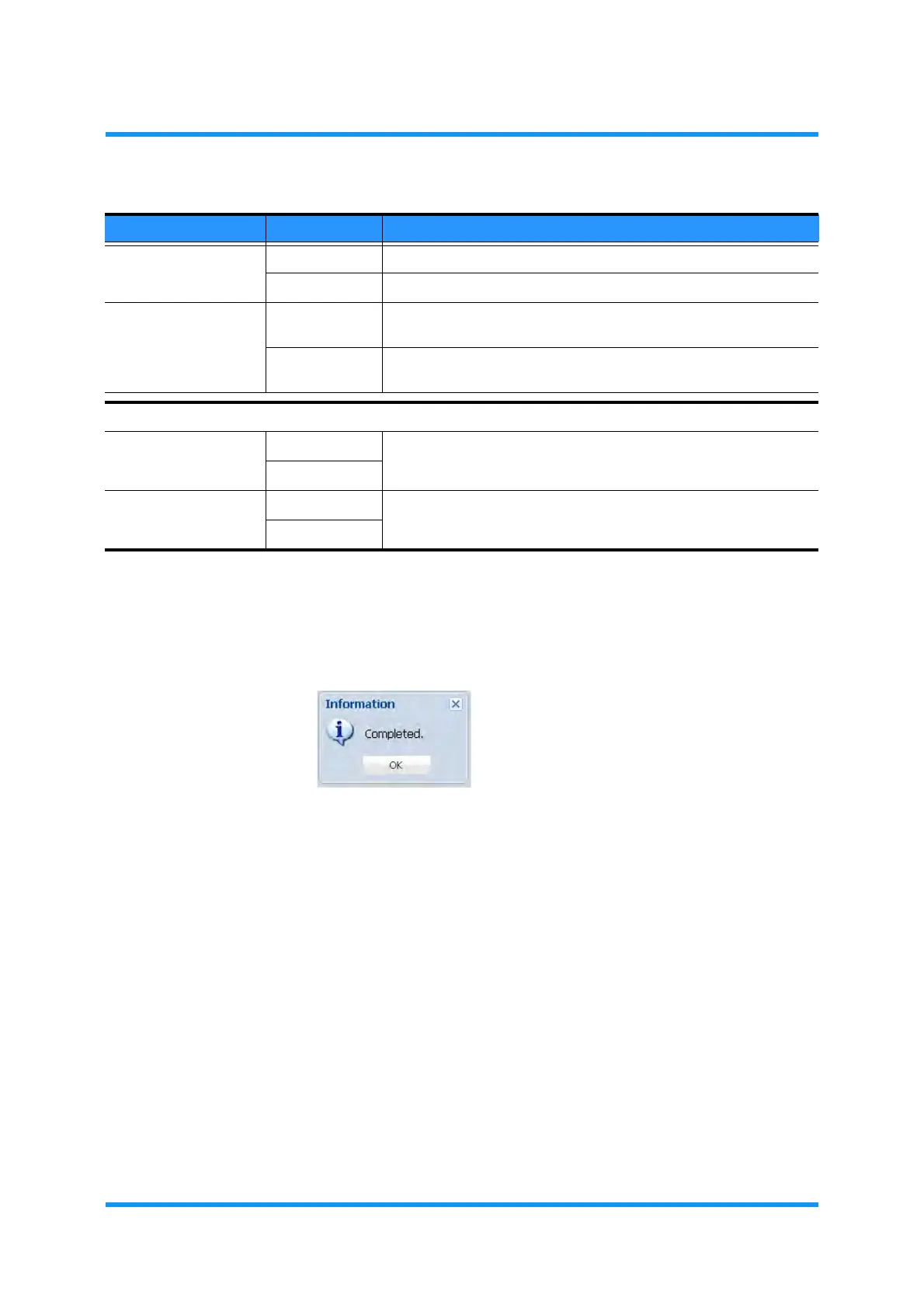

Figure 8-163 Information Dialog Box
The Link Aggregation Setting window updates the window.
Revertive
[For Static Mode only.]
Revertive Switches the active port back to the original port when recovered.
Non Revertive Does not switch the active port back even if recovered.
Distribution
Rule
L2 Base Distribution is based on the Source & Destination MAC, VLAN ID,
Ethernet Type and Physical Port ID.
L3 Base Distribution is based on the Source & Destination IP, Source &
Destination TCP/UDP Port number.
Link Aggregation Port
LAG Not Used To assign the LAG, select ETH GRP.
ETH GRP
Port Role Active Specify each port to Active/Standby. At least one port must be the
Active.
Standby
Table 8-29 Add LAG Option Parameters (2 of 2)
Parameter Value Description
