5-12 CONNECT CABLES
GGS-000546-01E iPASOLINK EX Advanced: INSTALLATION
4. Turn the waterproofing cap clockwise to lock the cap.

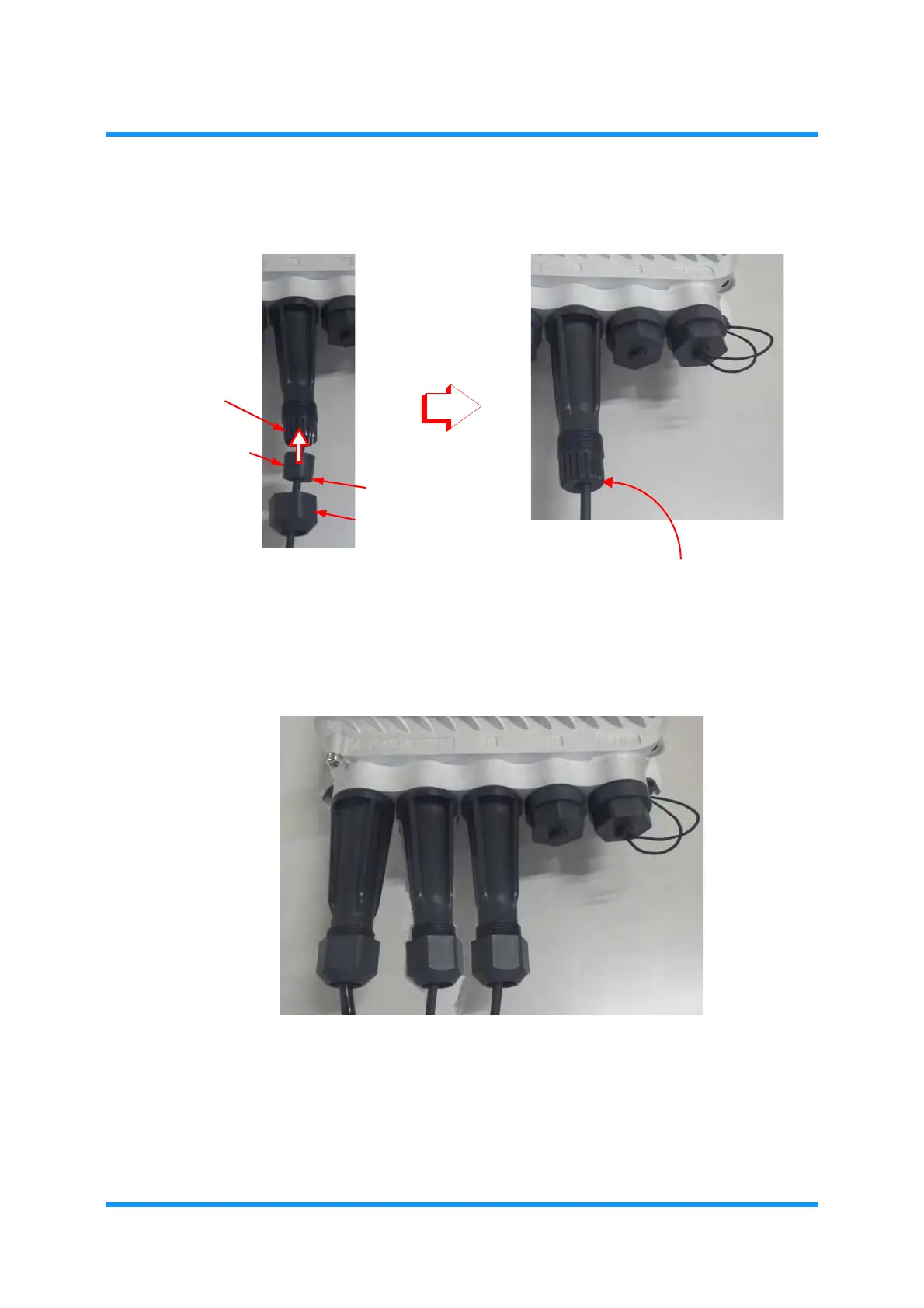

Figure 5-18 Set Bushing into Barrel
5. Tighten the Gland Nut at the barrel end level, and secure them using the torque
wrench.
Figure 5-19 Secure Gland Nut
This step ends the procedure.
Go to 5.6 Routing Cables to end the Cable Connecting procedure.
BUSHING
WITH RIB
BARREL
(GLAND NUT)
RIB
Check that the bushing is fully inserted
within the barrel end.
To Next Page
