CONTROL ITEMS 4-5
iPASOLINK EX Advanced: OPERATION & MAINTENANCE GGS-000548-01E
3. Click Loopback Control.

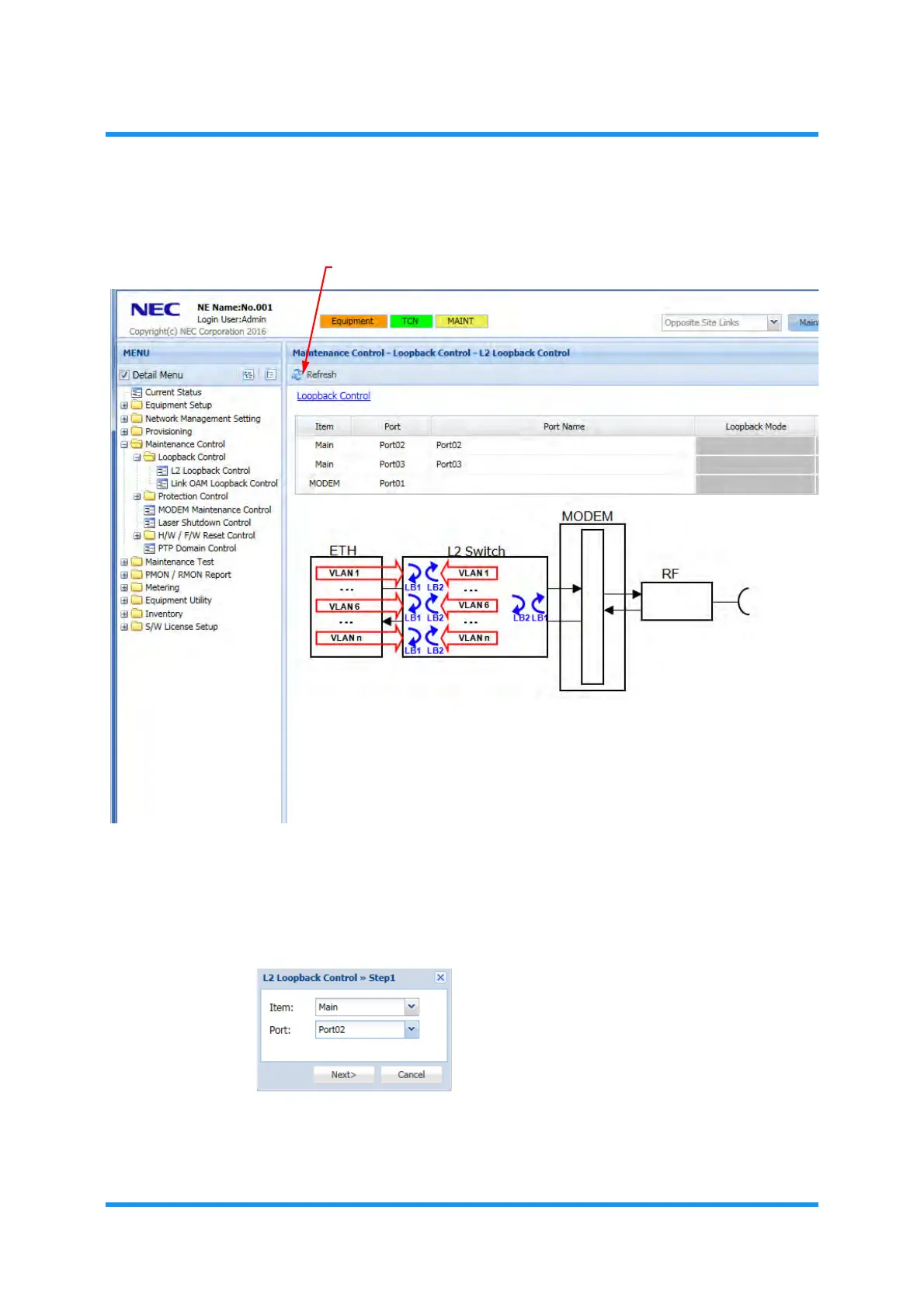

Figure 4-2 L2 Loopback Control Window
L2 Loopback Control >> Step 1
option window appears.
4. Select a port to execute the Loopback operation, then click the OK button.
Figure 4-3 L2 Loopback Control >> Step 1 Option Window
L2 Loopback Control >> Step 2 option window appears.
To Next Page
