8-6 ADJUST ANTENNA ANGLE
GGS-000546-01E iPASOLINK EX Advanced: INSTALLATION
1. Adjust the antenna angle — Left or Right:

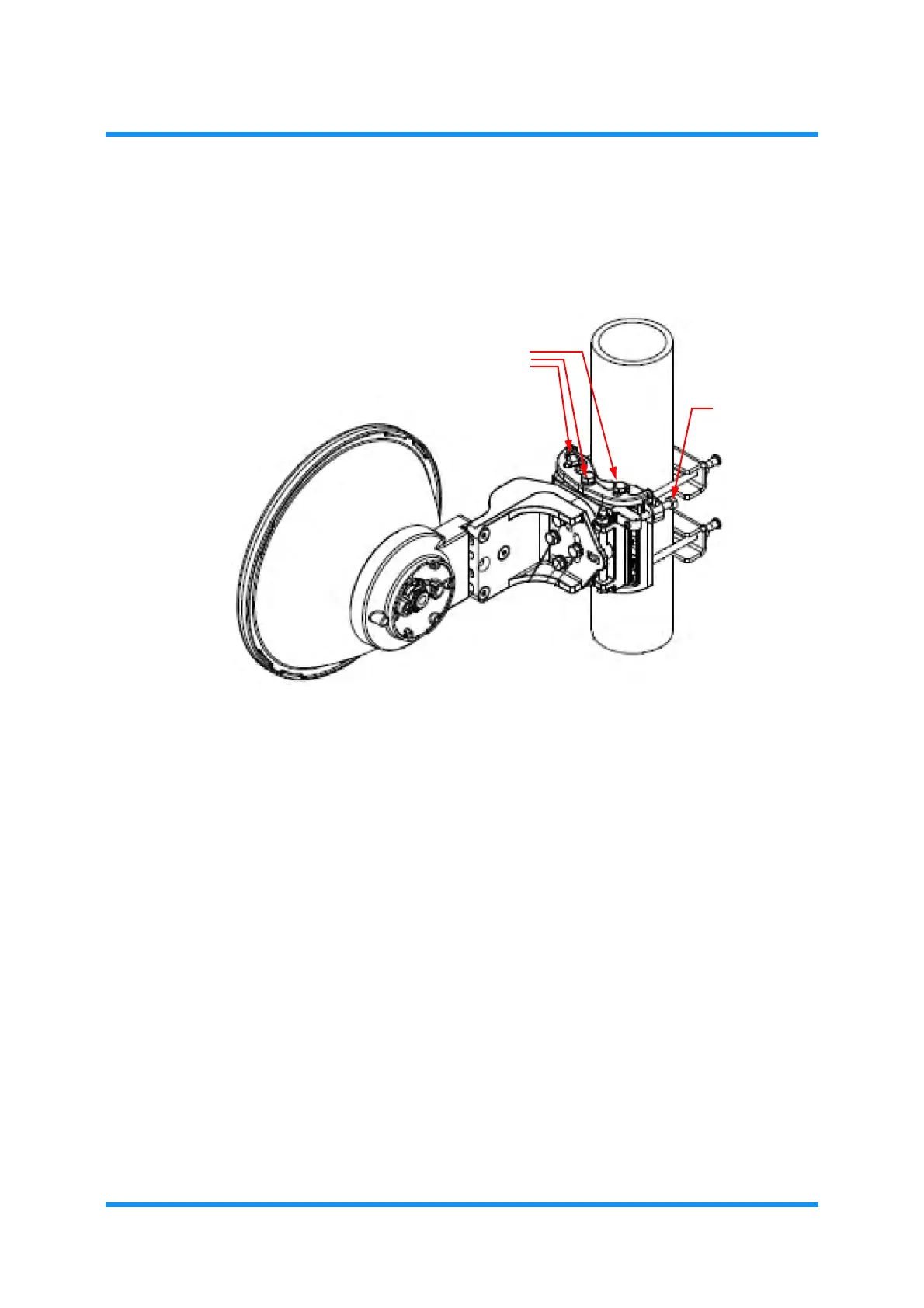

Figure 8-8 Turn Antenna to Left or Right
(1) Loosen six bolts on top and bottom of the bracket.
(2) Rotate the bolt to turn the antenna to the left or right.
(3) Adjust and specify parameters for control items using WebLCT at both
opposing sites.
(4) When the left/right angle is adjusted, secure the six bolts back in place.
(1) Loosen bolts
(2) Rotate bolt
(3) Tightening Torque: 38 Nm ±5%
To Next Page
