ADJUST ANTENNA ANGLE 8-7
iPASOLINK EX Advanced: INSTALLATION GGS-000546-01E
2. Adjust the antenna angle — Turn it up or down:

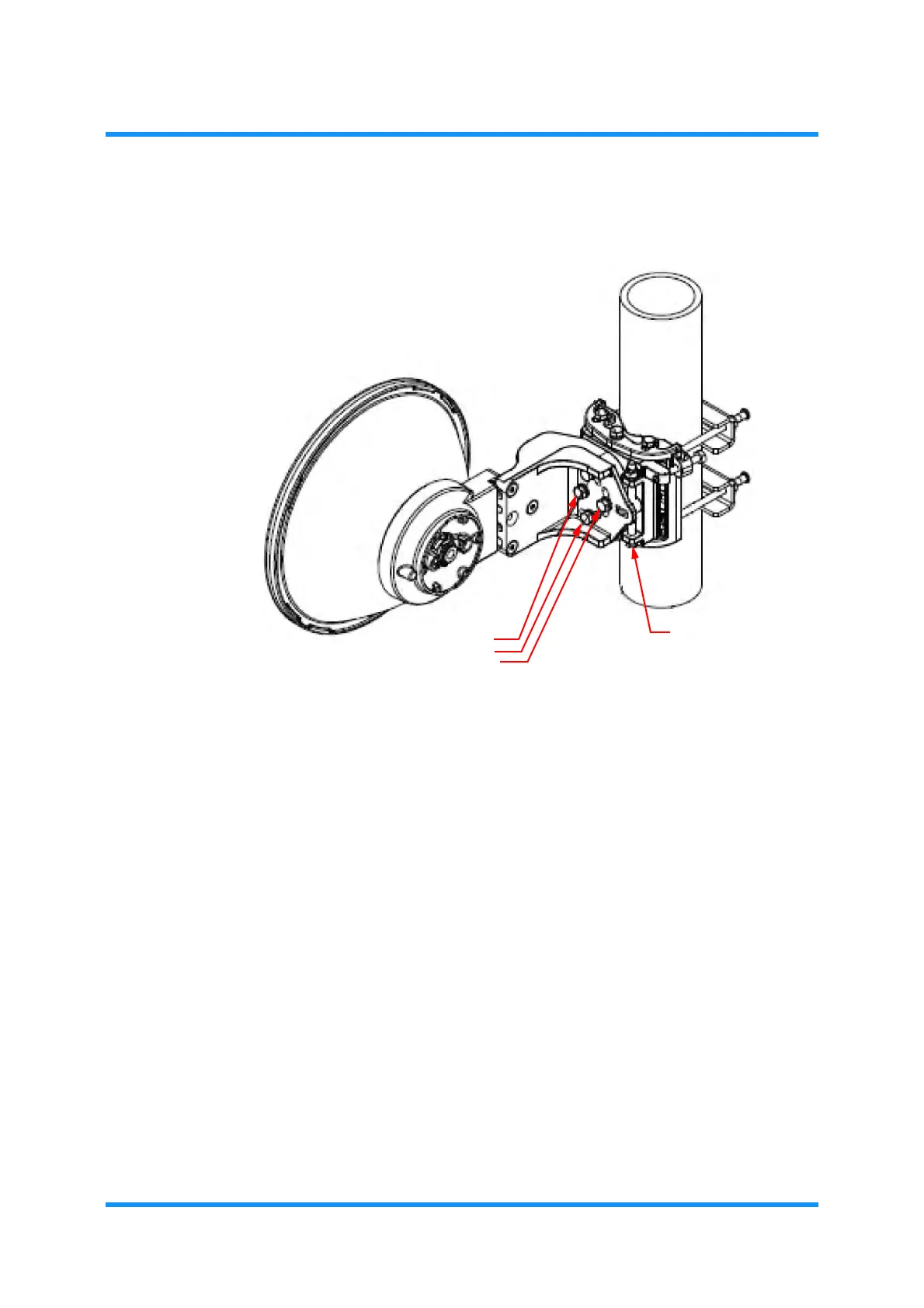

Figure 8-9 Turn Antenna Up or Down
(1) Loosen three bolts.
(2) Rotate the bolt to turn the antenna up and down.
(3) Adjust and specify parameters for control items using WebLCT at both
opposing sites.
(4) When the up/down angle is adjusted, secure the three bolts back in place
3. Release the system from Maintenance mode using WebLCT.
4. Disconnect the Multimeter from RSL terminal.
5. Put the protective cap back in place on RSL terminal of each station. This
terminal must be covered by the protective cap for waterproofing.
6. At each station, secure the Antenna by re-tightening bolts that have been
loosen in Step 2.
(1) Loosen bolts
(2) Rotate bolt
(3) Tightening Torque: 38 Nm ±5%
