5-4
CORRECTIVE MAINTENANCE
GGS-000548-01E
iPASOLINK EX Advanced
: O
PERATION
& M
AINTENANCE
2.

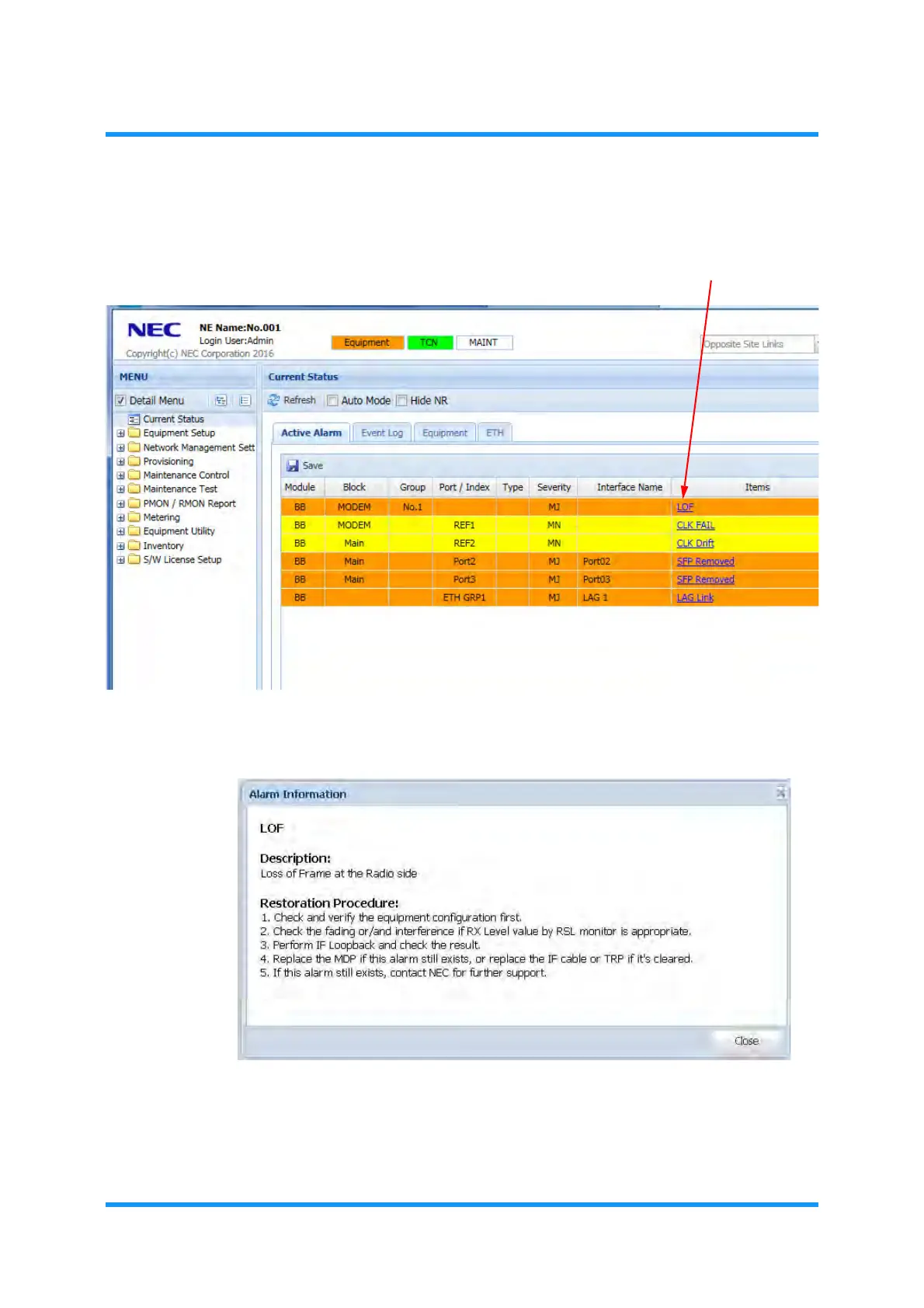

Click the link in the
Items
field.
Figure 5-2 Active Alarm T
ab (Updated)
3.
Alarm Information
window appears.
Figure 5-3 Alarm Inf
ormation Windo
w
cli
ck
730
732
