7. Slide the Fuse Unit into the and tighten the two screws (refer to Figure
3-95 Disconnecting Battery Cables on page 3-68).
8. Plug the Battery Connection Cables into the Fuse Unit.

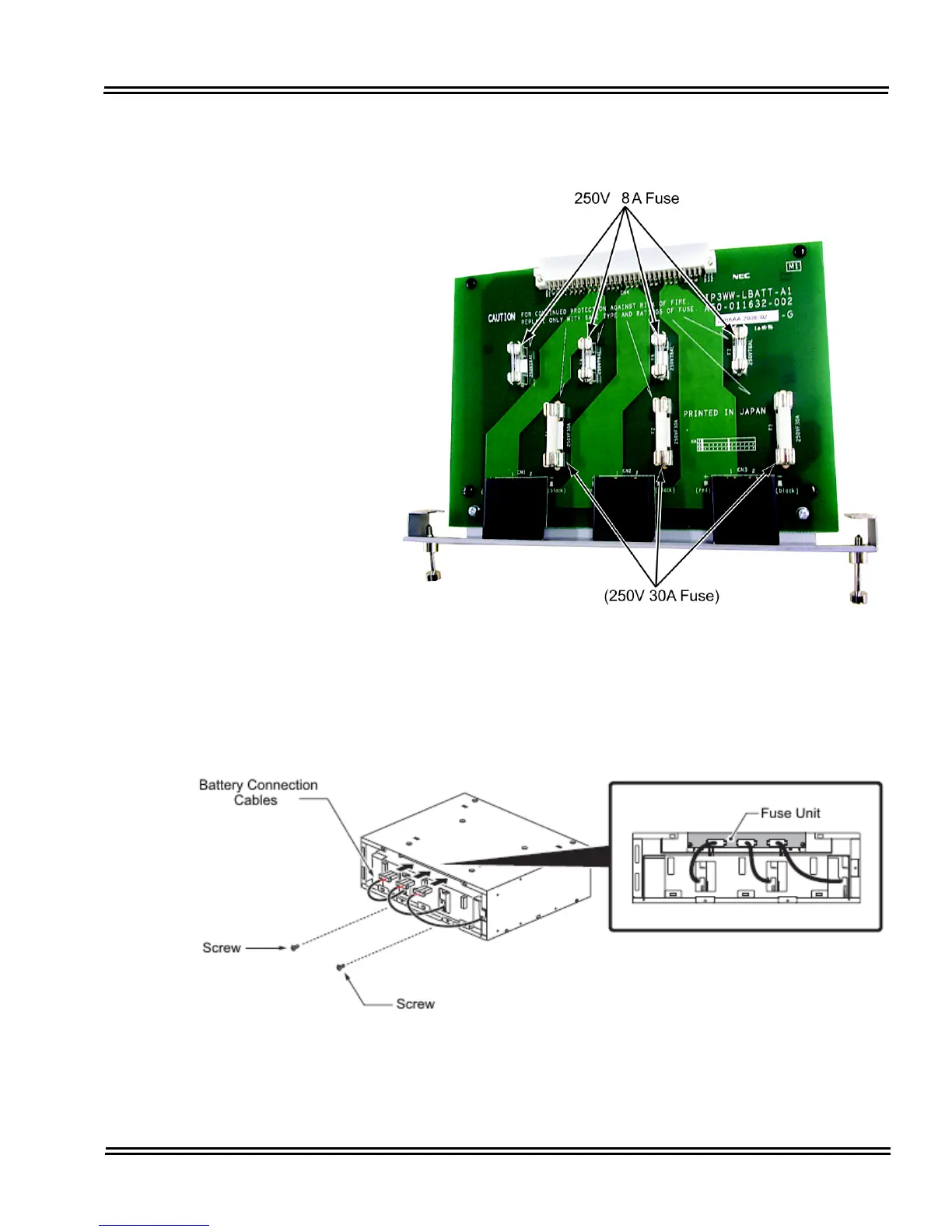

Figure 3-96 CHSG LARGE BATT BOX Fuse Unit
Figure 3-97 Connecting Battery Cables
