14. For the Handset, set the connector in place.
15. Attach the analog trunk cable and the handset cable. Refer to
Figure 6-35 PSA-L UNIT Connections on page 6-44.
16. Reinstall the legs, pushing upwards until both locks snap into
place.
17. Return tilt leg to desired position.
18. Return the multiline terminal to the numbered keypad in the up
position.
19. Connect the Line cord, the PSTN cable and the Handset cord
(if used).
20. Remove both plastic panels from the front of the multiline
terminal.

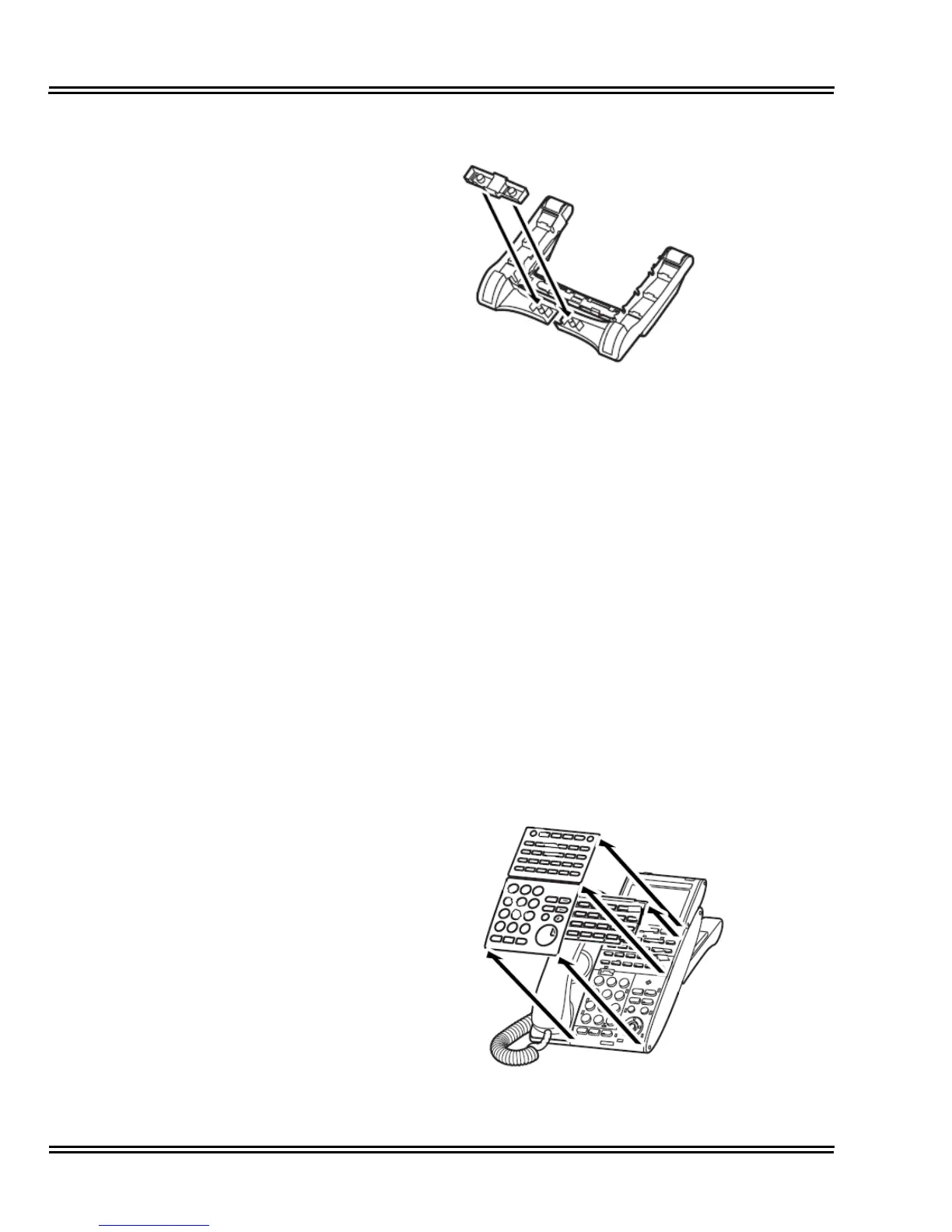

Figure 6-42 Insert Connector for Handset Use
Figure 6-43 Remove Plastic Panels
