NXP Semiconductors MC9S12G User Manual

Timer Module (TIM16B6CV3)
MC9S12G Family Reference Manual Rev.1.27
720 NXP Semiconductors
22.1.2 Modes of Operation
Stop: Timer is off because clocks are stopped.
Freeze: Timer counter keeps on running, unless TSFRZ in TSCR1 is set to 1.
Wait: Counters keeps on running, unless TSWAI in TSCR1 is set to 1.
Normal: Timer counter keep on running, unless TEN in TSCR1 is cleared to 0.
22.1.3 Block Diagrams

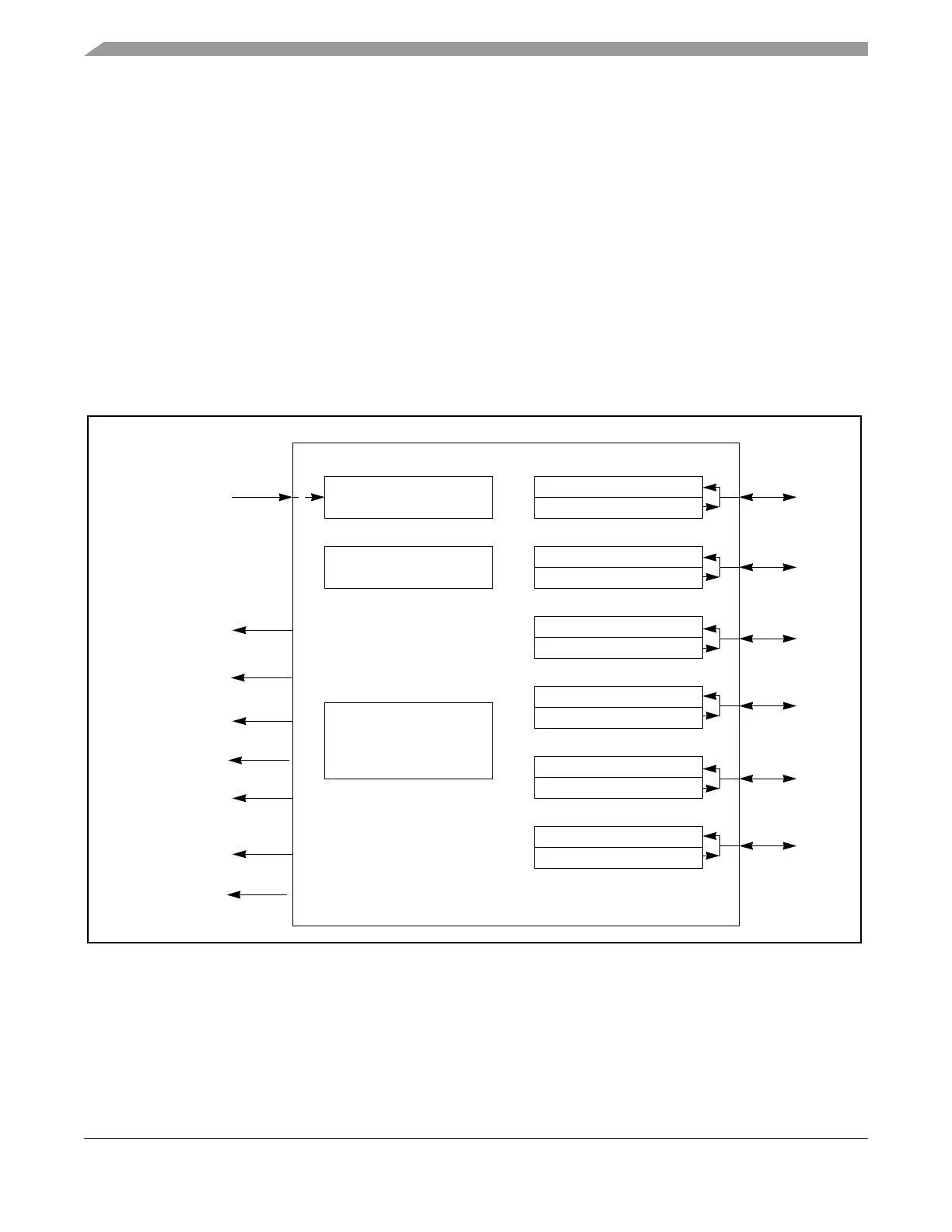

Figure 22-1. TIM16B6CV3 Block Diagram
Prescaler
16-bit Counter
Input capture
Output compare
IOC0
IOC2
IOC1
IOC5
IOC3
IOC4
Timer overflow
interrupt
Timer channel 0
interrupt
Timer channel 4
interrupt
Registers
Bus clock
Input capture
Output compare
Input capture
Output compare
Input capture
Output compare
Input capture
Output compare
Input capture
Output compare
Channel 0
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Timer channel 1
interrupt
Timer channel 2
interrupt
Timer channel 3
interrupt
Timer channel 5
interrupt
