4535 612 10261 HD11 Service Manual Page 122
CSIP: Level 2 Installation: Physical Installation Procedures

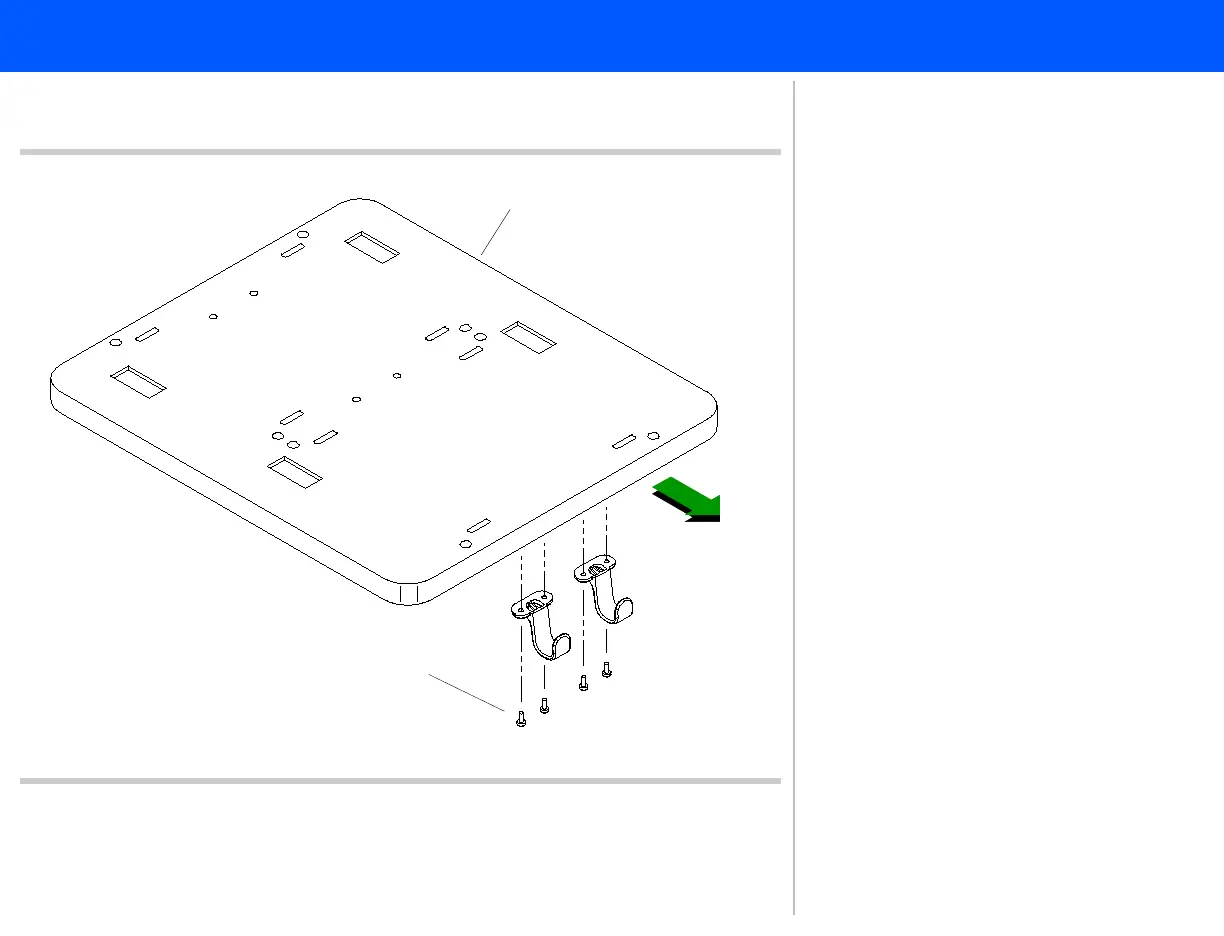

Figure 5-30 Installing the Dual Mounting Plate Power
Cord Hanger Hooks
Dual peripheral mounting plate
Rear of system
5
Panhead screws (4 plcs)
5
5. Install the two power cord hanger
hooks (hardware supplied with the
dual mounting plate) to the bottom
rear side of the dual mounting plate.
Secure the hooks with the four pan-
head screws supplied. Proceed to
step 6.
To Next Page
