4535 612 10261 HD11 Service Manual Page 246
CSIP Level 1 Disassembly and Reassembly: Disassembly Procedures

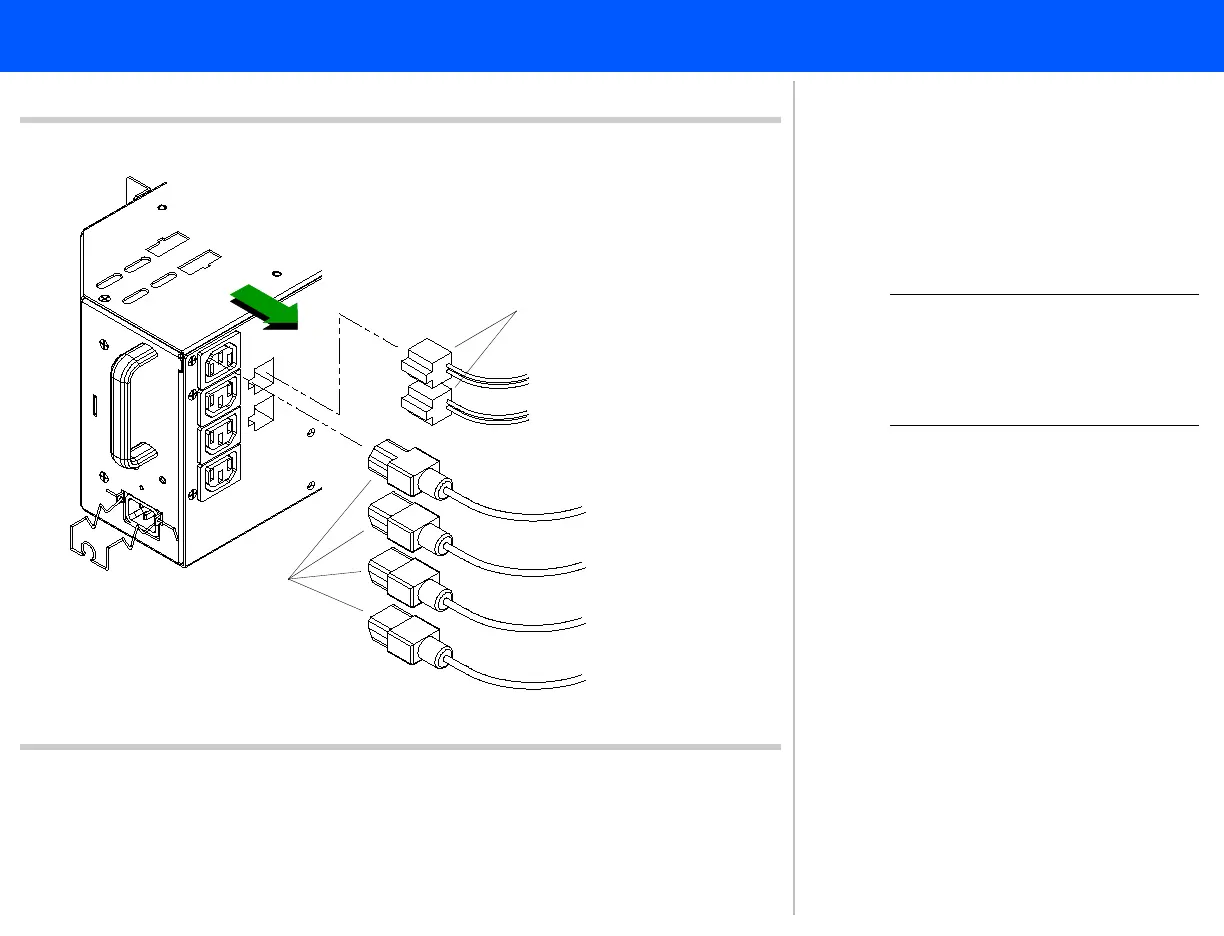

Figure 10-59 Disconnecting the Power Cord Cables
7
8
PC power
Peripherals power
B&W printer power
Monitor power
Fan assemblies power
7. Disconnect the four power cord
cables from the side of the power
supply.
NOTE Reconnect these cables in the
same locations. The top recep-
tacle slot is for the PC power
cord connection.
8. Disconnect the two fan assembly
power cables. Proceed to step 9.
To Next Page
