CSIP Level 1 Disassembly and Reassembly: Disassembly Procedures

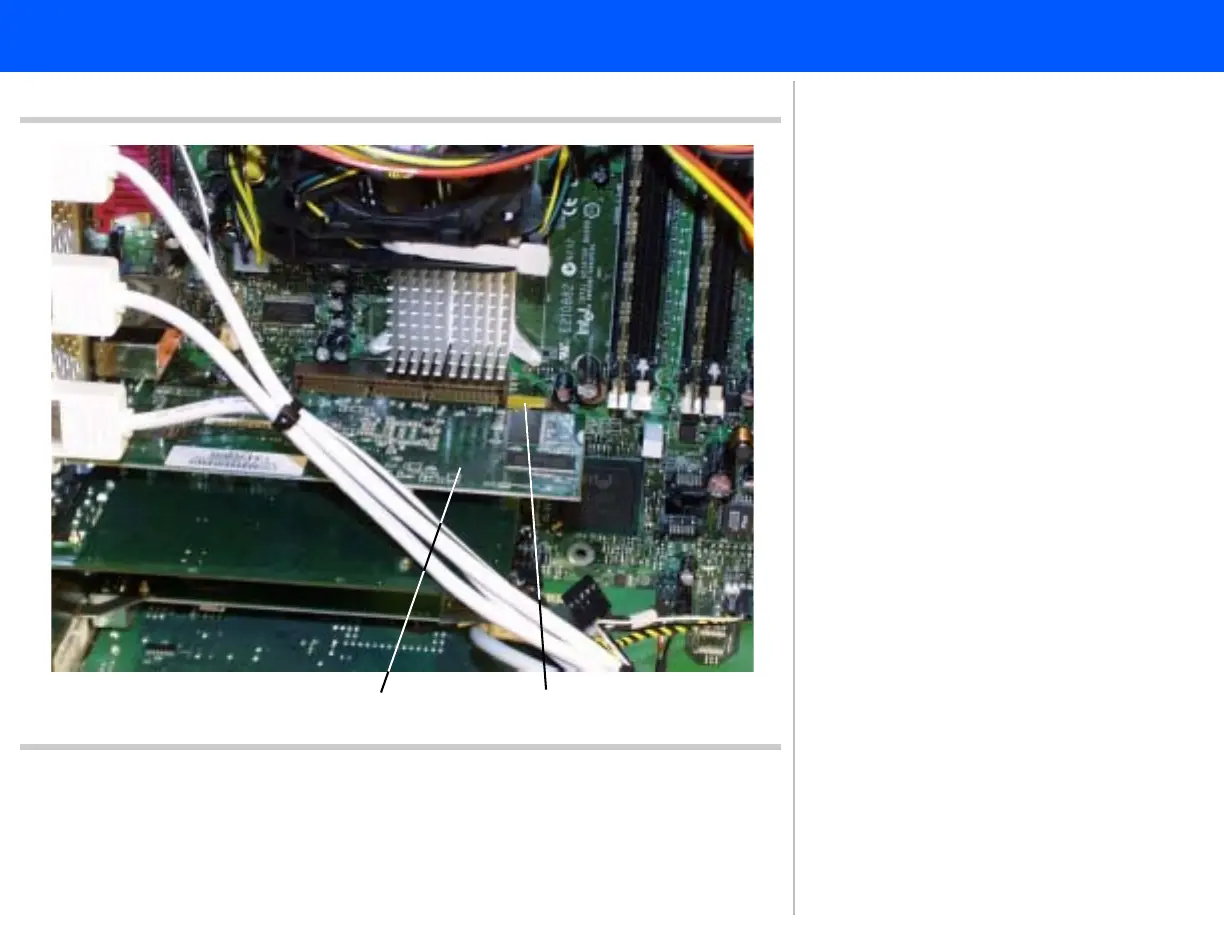

Figure 10-39 Graphics Board in Locked Position
Graphics board Connector locking tab
3
3. Locate the connector locking tab on
the right side of the AGP mother-
board connector. Proceed to step 4.
