Philips HD11 - Figure 10-72 Installing the Gas Strut into the Lock Bracket

4535 612 10261 HD11 Service Manual Page 259
CSIP Level 1 Disassembly and Reassembly: Disassembly Procedures

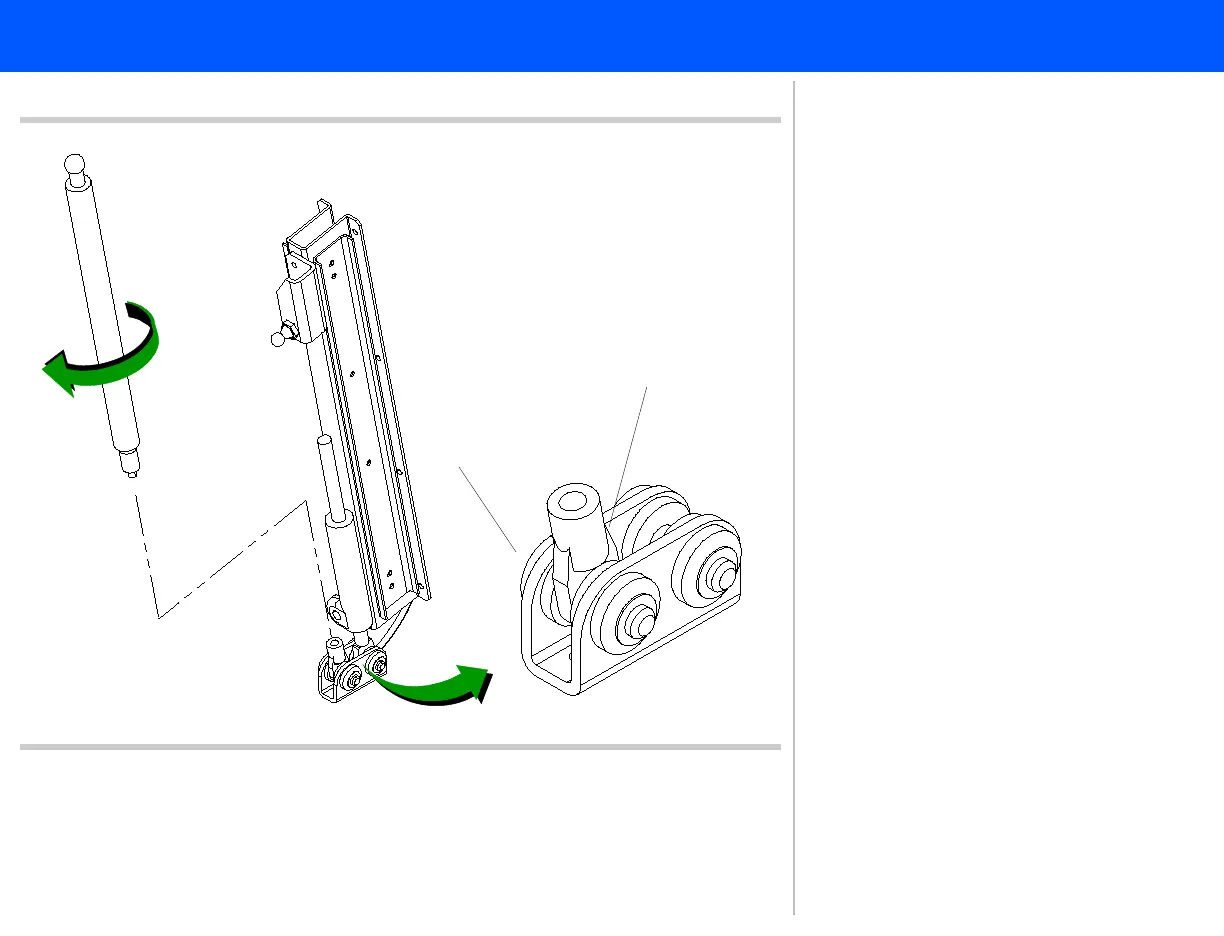

Figure 10-72 Installing the Gas Strut into the Lock Bracket
11
12
Eyelet (push
here to rotate)
Lock bracket
11. Using a long-neck screwdriver, rotate
the lock bracket eyelet upward until
you see the screw hole. Hold it in
that position.
12. Screw the gas strut (clockwise) into
the lock bracket eyelet until it is
snug. Proceed to step 13.
