4535 612 10261 HD11 Service Manual Page 220
CSIP Level 1 Disassembly and Reassembly: Disassembly Procedures

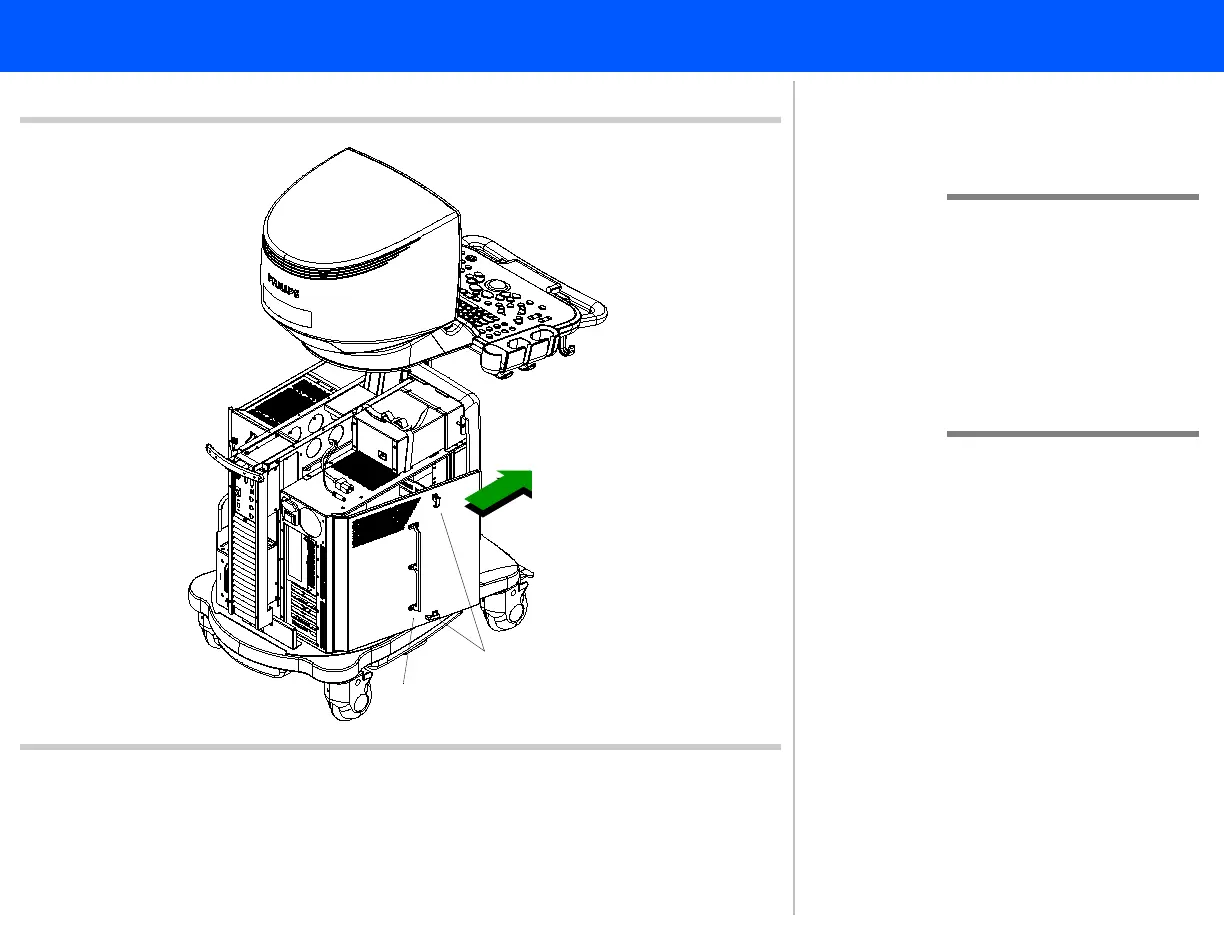

Figure 10-33 Removing the PC Access Panel
4
Handle
4
5
CAUTION Always observe proper
ESD procedures when
servicing the inside of the
PC. Wear a grounded
wrist strap and work on a
static-dissipating mat if
possible.
4. There are two twist-locks on the PC
access panel. Lift both the
twist-locks outward and turn them
90 degrees and pull the access panel
open using the handle on the panel.
Do not pull on the twist-locks.
5. Slide the panel toward the front of
the system to fully remove it from
the PC assembly. Proceed to step 6.
