4535 612 10261 HD11 Service Manual Page 258
CSIP Level 1 Disassembly and Reassembly: Disassembly Procedures

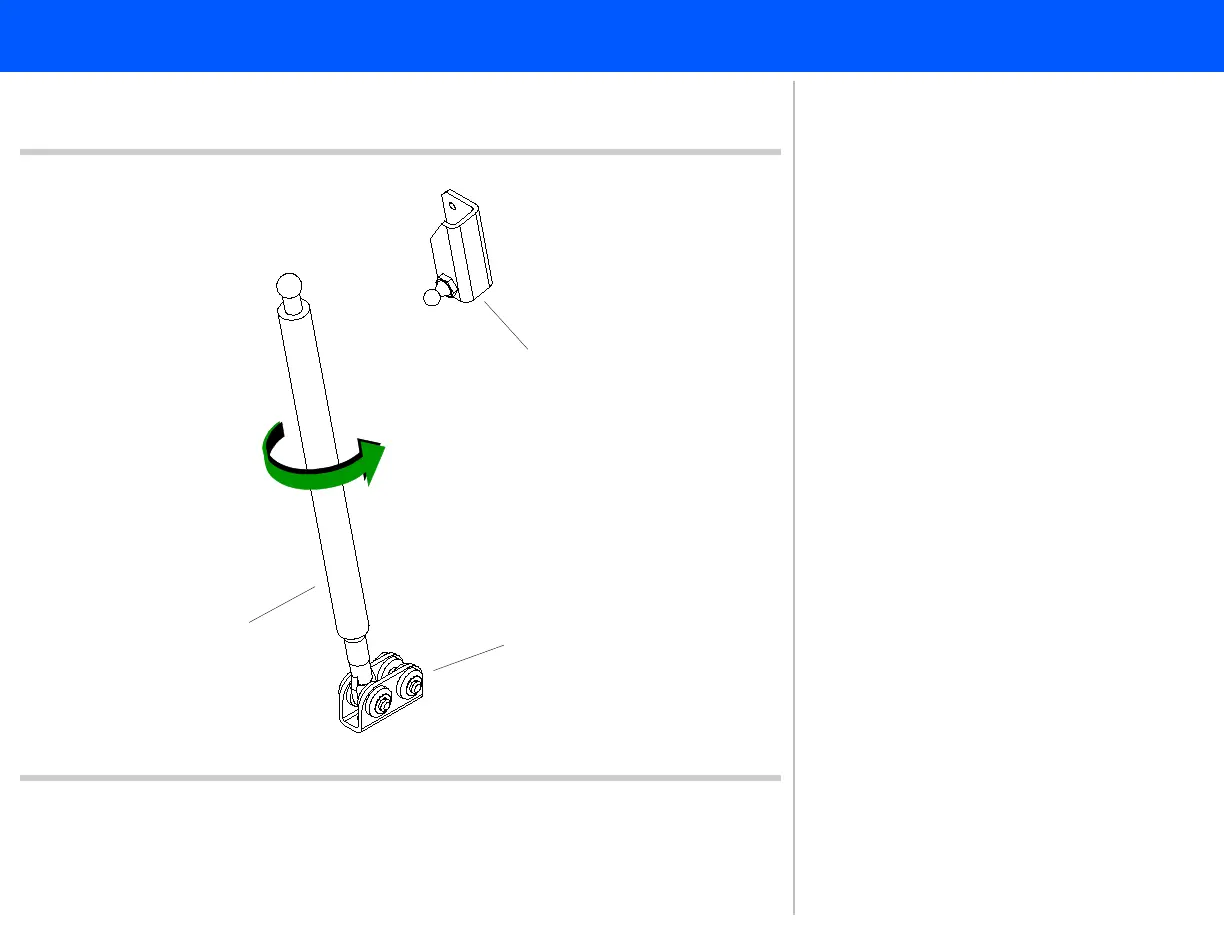

Figure 10-71 Removing the Gas Strut from the Lock
Bracket
10
Ball stud and bracket
Gas strut
Lock bracket
10. Unscrew the gas strut (counter-
clockwise) until it releases from the
eyelet on the lock bracket. The gas
strut is now removed. Proceed to
step 11.
