4535 612 10261 HD11 Service Manual Page 190
CSIP Level 1 Disassembly and Reassembly: Disassembly Procedures
System Enclosures

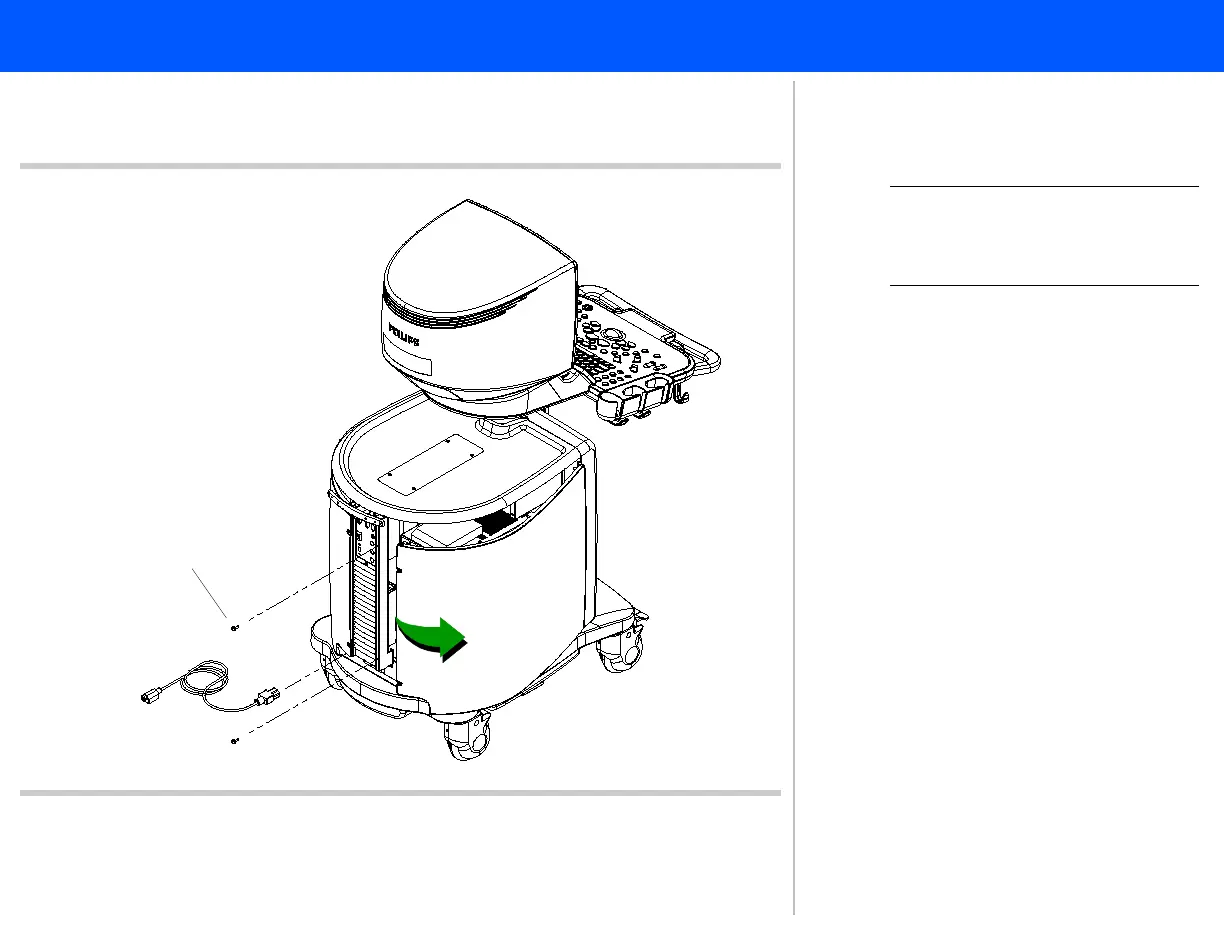

Figure 10-3 Removing the Left Side Panel
To r x s c r e w s
(2 plcs)
2
3
1
NOTE The two side panels must be
removed before removing the
front panel or top cover.
➤ To remove the system enclo-
sures
1. Disconnect the system power cord
from the main AC supply.
2. Remove the two Torx screws secur-
ing the left side panel enclosure.
Removing this panel allows access to
the PC assembly.
3. Pivot the back side of the panel away
from the system, and then gently
slide the panel toward the rear to
remove it. Proceed to step 4.
To Next Page
