Philips HD11 - Figure 10-42 Removing the E-box Assembly

4535 612 10261 HD11 Service Manual Page 229
CSIP Level 1 Disassembly and Reassembly: Disassembly Procedures

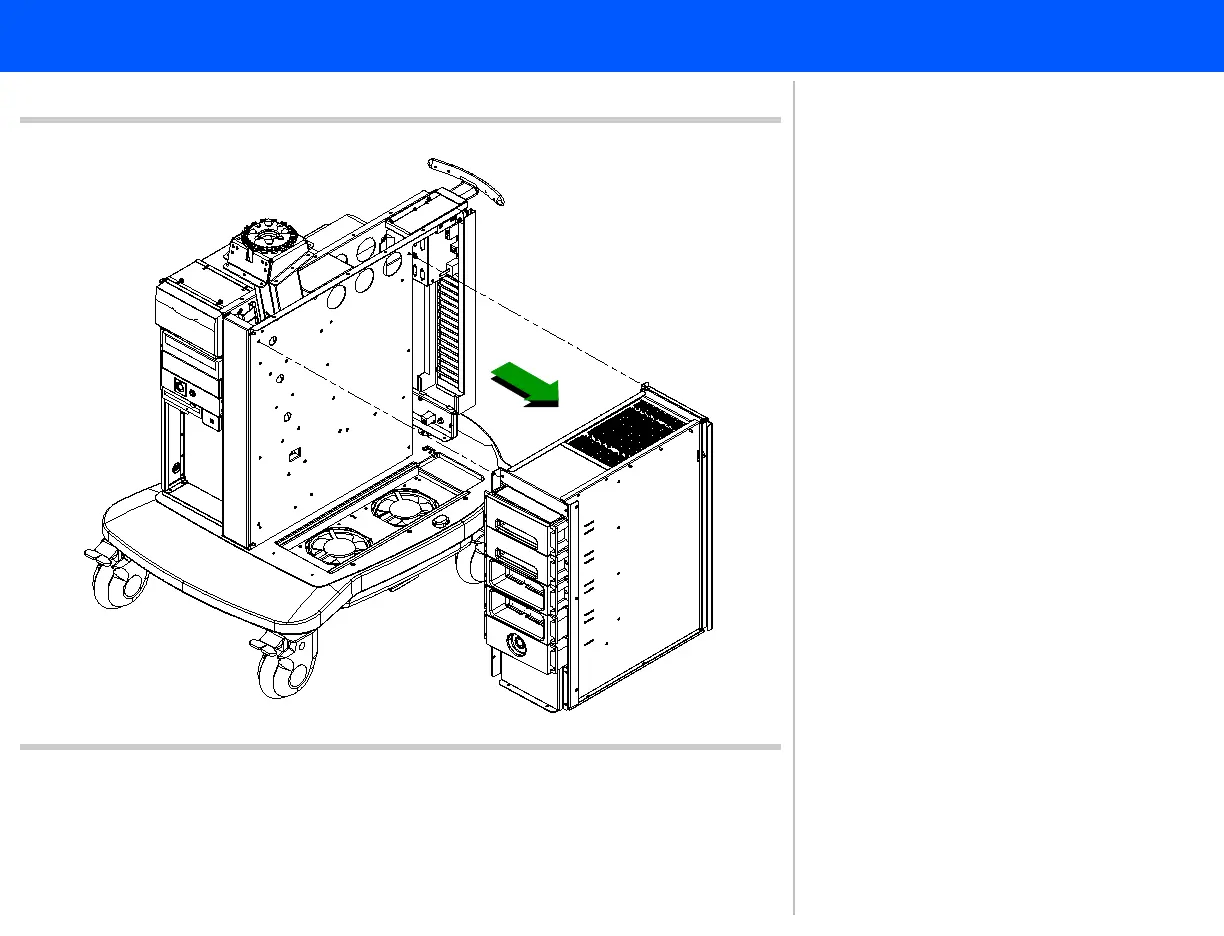

Figure 10-42 Removing the E-box Assembly
2
2. Lift the E-box assembly off the cart
frame.
This completes the E-box assembly
removal procedure.
Perform this procedure in reverse for
reassembly.
Return to Disassembly Procedure List (2
of 2).
