VTrak E-Class Product Manual
126

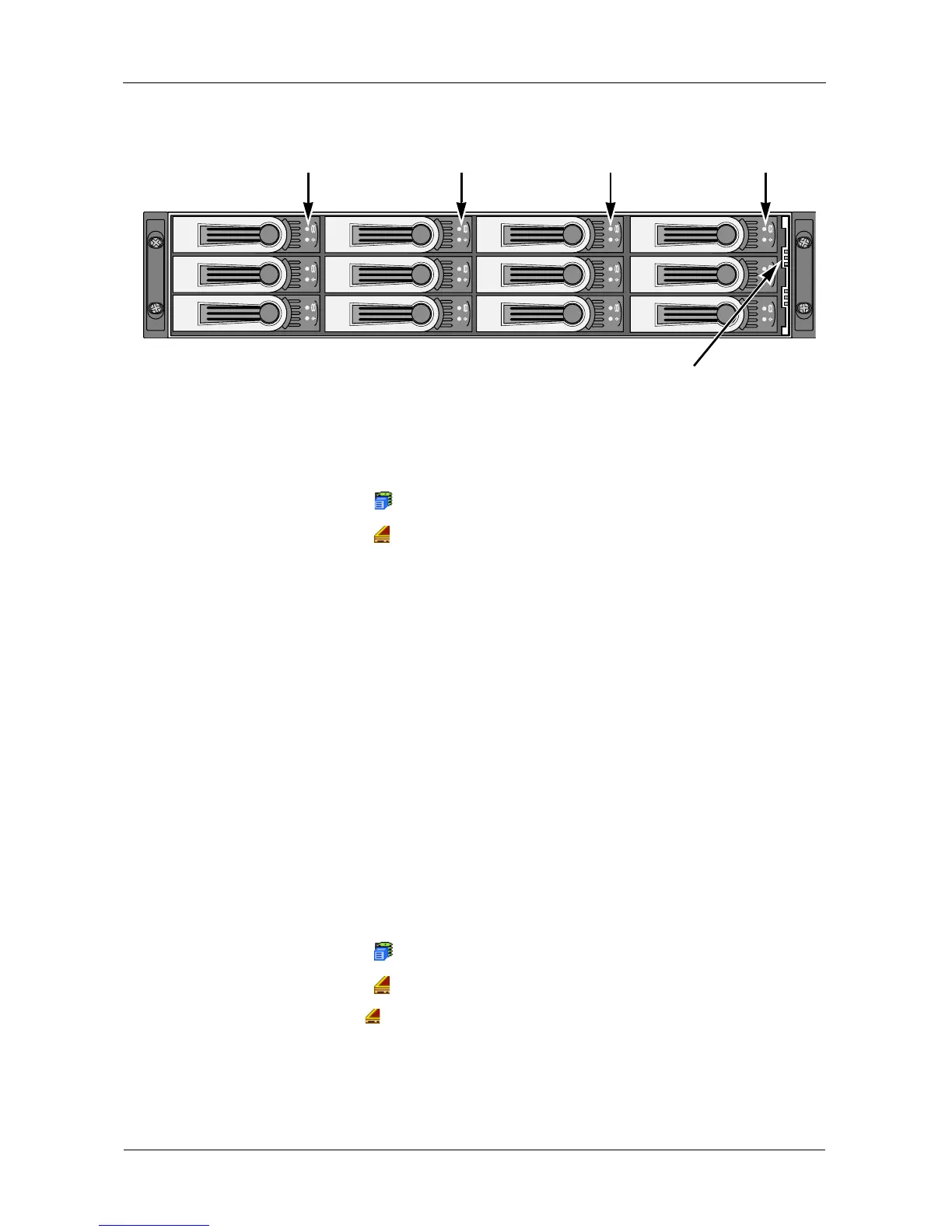

Figure 9. VTrak E310f/s front view
Viewing Enclosure Topology
To view Enclosure Topology:
1. Click the Subsystem icon in Tree View.
2. Click the Enclosures icon.
3. Click the Topology tab in Management View.
Enclosure topology refers to the manner in which the data paths among the
enclosures are connected:
Individual Subsystem – One VTrak E-Class subsystem
JBOD Expansion – One VTrak E-Class subsystem plus one or more JBOD
expansion subsystems, managed through one subsystem or head unit
RAID Subsystem Cascading – Multiple VTrak E-Class subsystems,
managed through one subsystem or head unit
The logical connections for these arrangements are shown the Enclosure
Topology tab. The physical connections for these arrangements are discussed in
“Chapter 2: VTrak Installation” on page 11.
Viewing Enclosure Information
To view enclosure information:
1. Click the Subsystem icon in Tree View.
2. Click the Enclosures icon.
3. Click the Enclosure icon.
Enclosure information appears the Information tab in Management View. You
can monitor power supplies, cooling units, enclosure temperatures and
voltages, and the battery.
Disk Status LEDs
FRU Status LED
Disk Status LEDsDisk Status LEDs Disk Status LEDs
