VTrak E-Class Product Manual
342
Enclosure Problems
WebPAM PROe displays yellow !s red Xs in Tree View to identify
components that need attention.
When a yellow ! appears over a Subsystem in Tree View, click the Enclosure
icon. The Enclosure screen displays. See Figure 16.

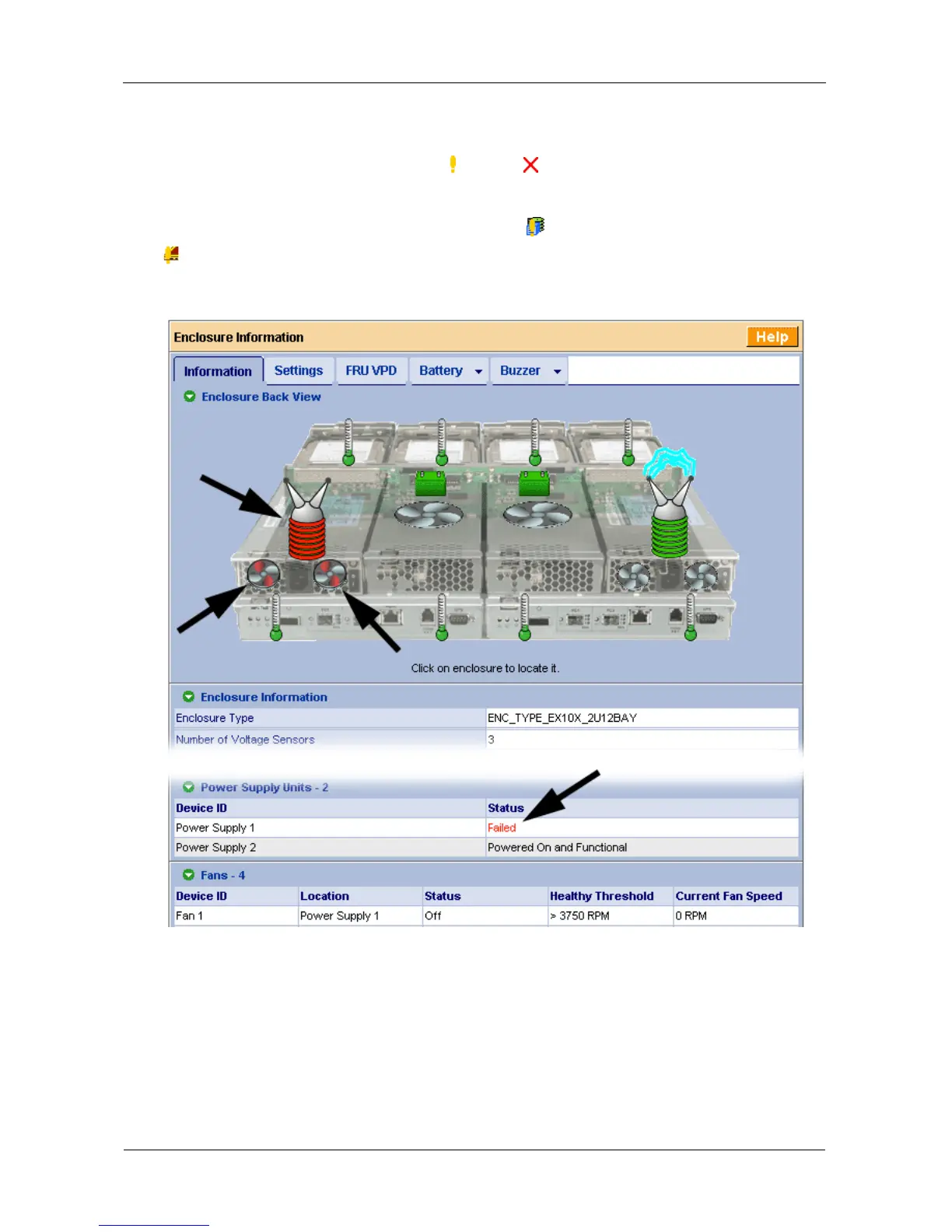

Figure 16.Enclosure information in Management View
In this example, a power supply has failed. The Enclosure Diagram displays color
and motion changes to identify the failed power supply. In this case, you must
replace the power supply. See “Replacing a Power Supply” on page 259.
