Chapter 8: Troubleshooting
309
LEDs Display Amber or Red
Front Panel
When the power is switched on, the LEDs on the front of the VTrak will light up.

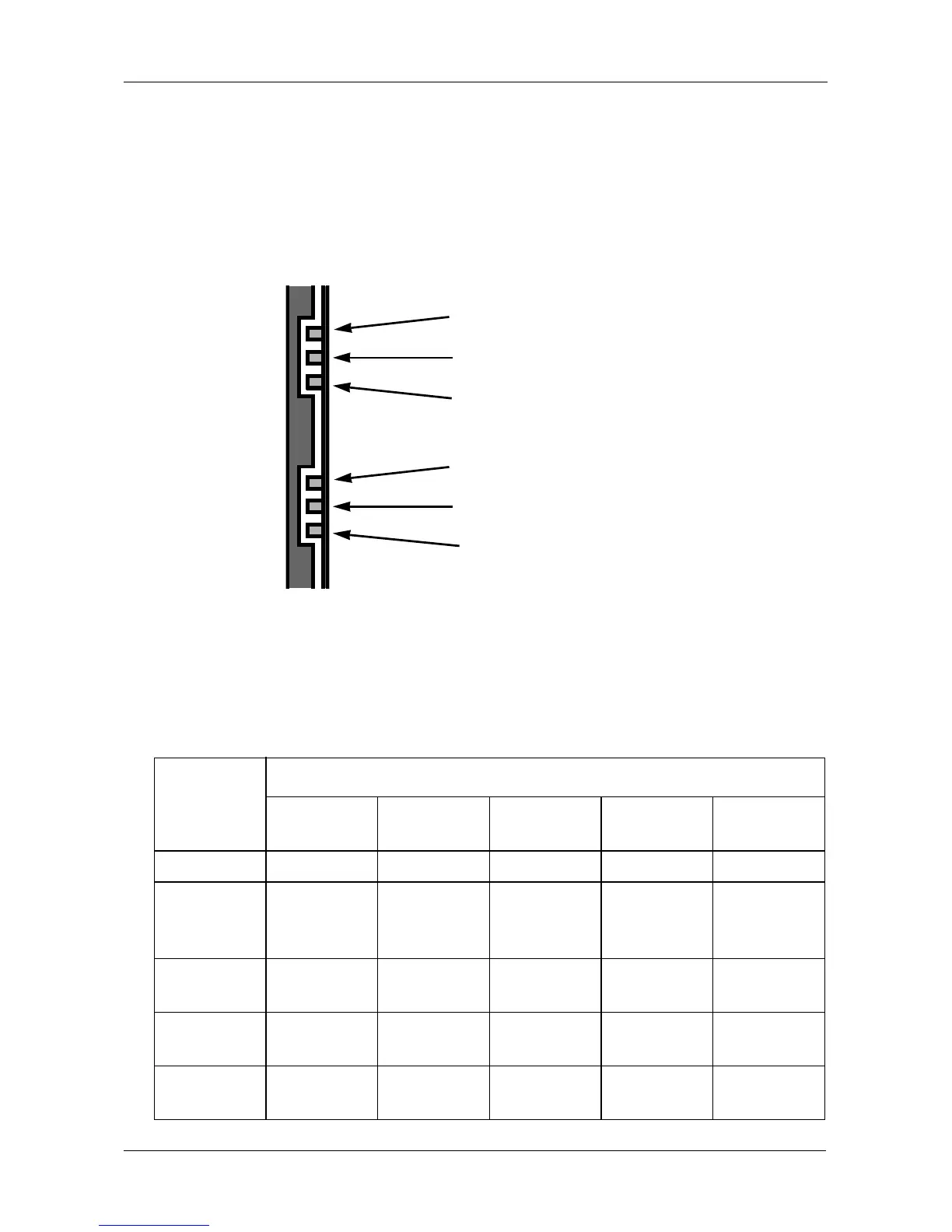

Figure 2. VTrak front panel LED display. The E310f/s is shown. the E610f/s
is similar
When boot-up is finished and the VTrak is functioning normally:
• Controller Heartbeat LED blinks once every two seconds.
• Power, FRU and Logical Drive LEDs display green continuously.
• The RAID Controller LEDs flash green if there is activity on that controller.
See the table below.
LEDs
State
Dark
Steady
Green
Flashing
Green
Amber Red
Power System Off Normal — — —
FRU* System Off Normal —
Fan, battery
or PSU
Problem
Fan, battery
or PSU
Failed
Logical
Drive
System Off Normal —
Logical
Drive Critical
Logical
Drive Offline
Controller
Activity
No Activity — Activity — —
Controller
Heartbeat
System Off — Normal** — —
Power
RAID Controller 2 Activity
FRU Status
Logical Drive Status
RAID Controller 1 Activity
Controller Heartbeat
