Initial Connection
Making an initial connection includes the following functions:
• Making a Serial Connection (page 166)
• Making a Telnet Connection (page 167)
• Making a SSH Connection (page 167)
• Logging In (page 168)
• Accessing Online Help (page 169)
• Exiting the CLU (page 169)
• Logging Out of the CLI (page 170)
• Logging Back Into the CLI and CLU (page 170)
Making a Serial Connection
Before you begin, be sure the RJ11-to-DB9 serial data cable is connected
between the Host PC and VTrak, and that both machines are booted and
running.

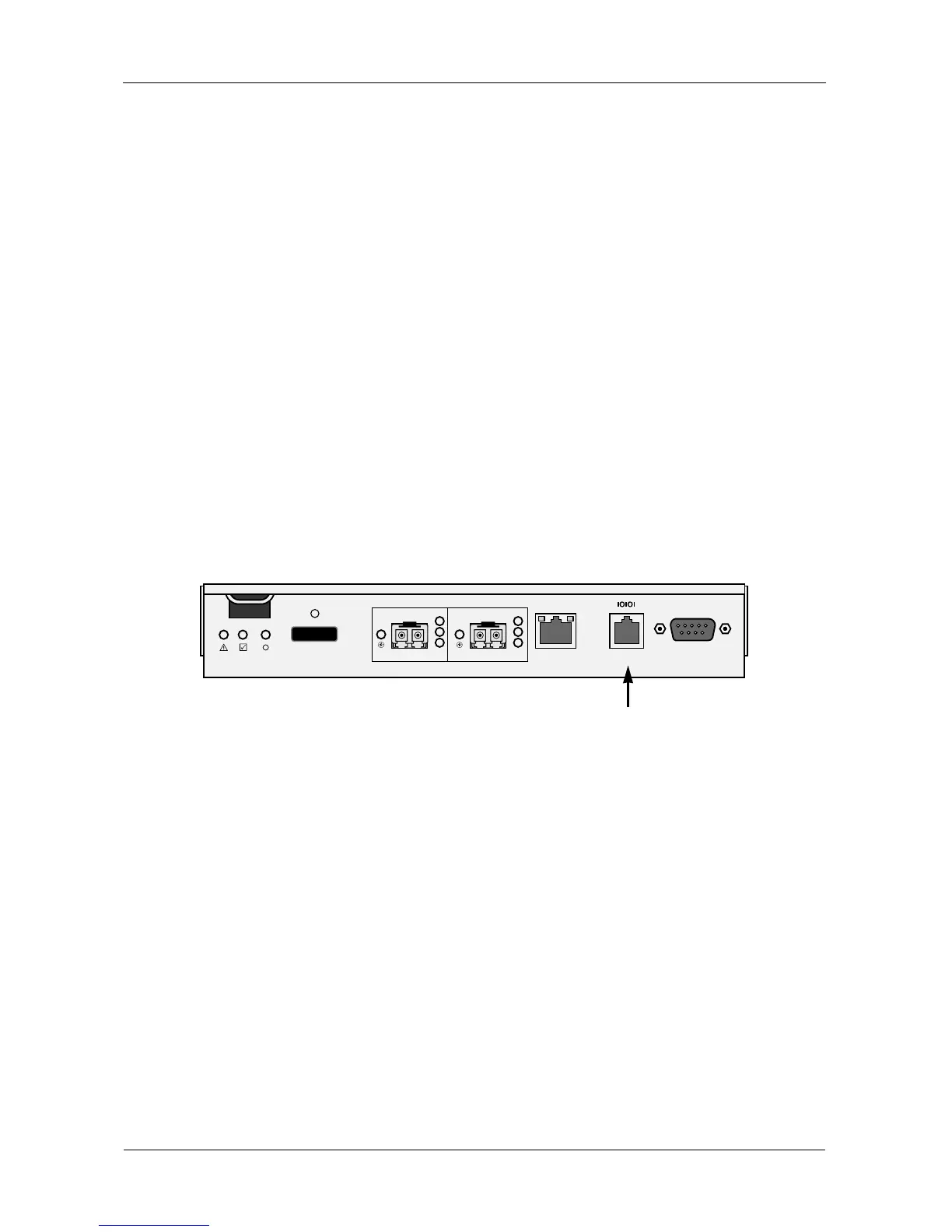

Figure 1. Serial port on the controller
Then do the following actions:
1. Change your terminal emulation program settings to match the following
specifications:
• Bits per second: 115200
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: none
2. Start your PC’s terminal VT100 or ANSI emulation program.
3. Press Enter once to launch the CLI.
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
Serial port
