VTrak E-Class Product Manual
36
Setting Up Serial Cable Connections
Serial communication enables the Command Line Interface (CLI) and Command
Line Utility (CLU) on your PC to monitor to control the VTrak. The VTrak package
includes one RJ11-to-DB9 serial data cable for each controller. All VTrak models
have the same serial connection.

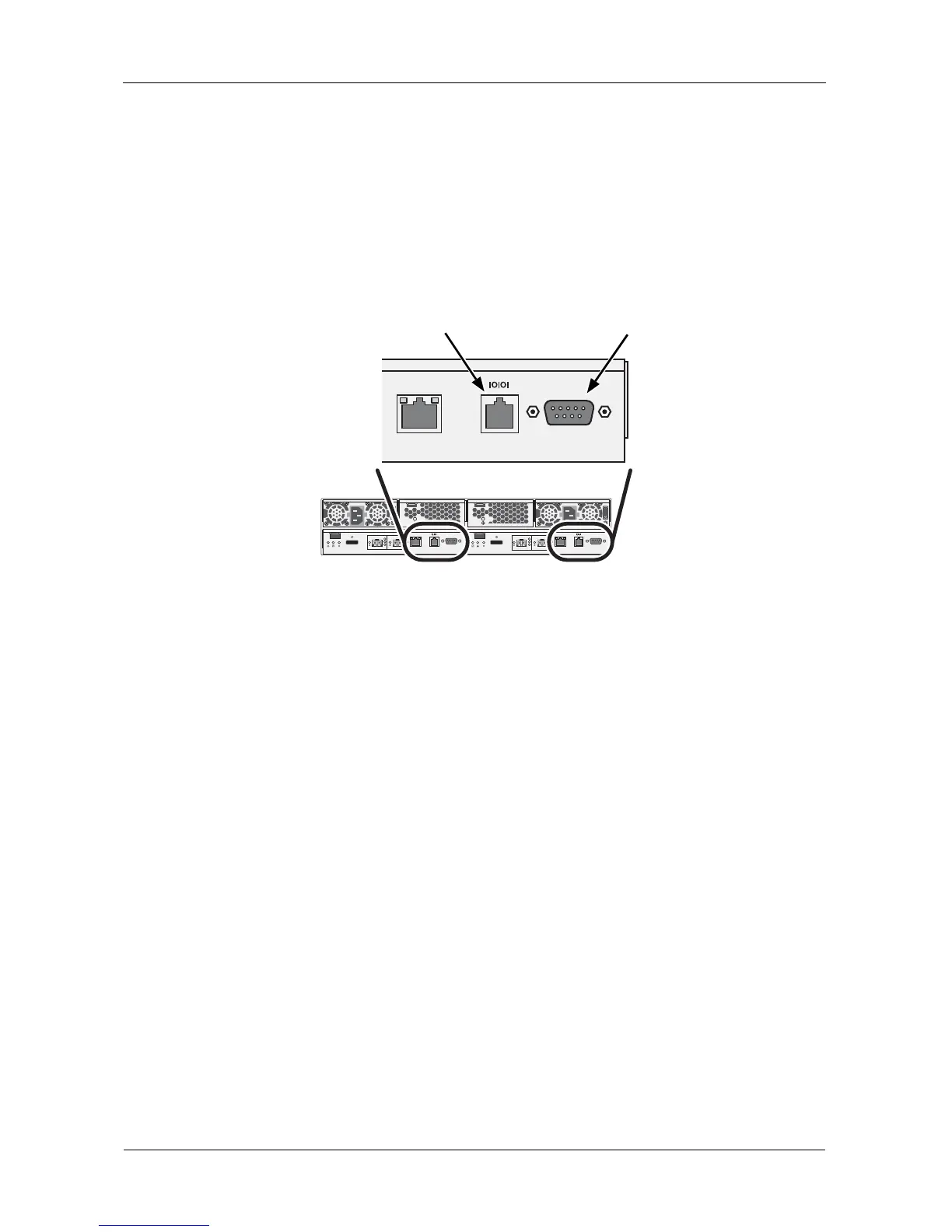

Figure 23. Serial and UPS connectors are located on the controller
To set up a serial cable connection:
1. Attach the RJ11 end of the serial data cable to the RJ11 serial connector on
one of the controllers.
2. Attach the DB9 end of the serial data cable to a serial port on the Host PC or
Server.
Optional UPS Serial Connection
If your deployment plan calls for one or more UPS units and management via
serial communication, connect the UPS control cable to the DB9 connector on
the VTrak controller. See Figure 23.
When your subsystem is running, see “Making UPS Settings” on page 137 or
page 223 to complete the UPS management setup.
Mgmt
UPS
115200
8 N 1
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
O
I
O
I
RJ11 Serial
connector
DB9 UPS
connector
