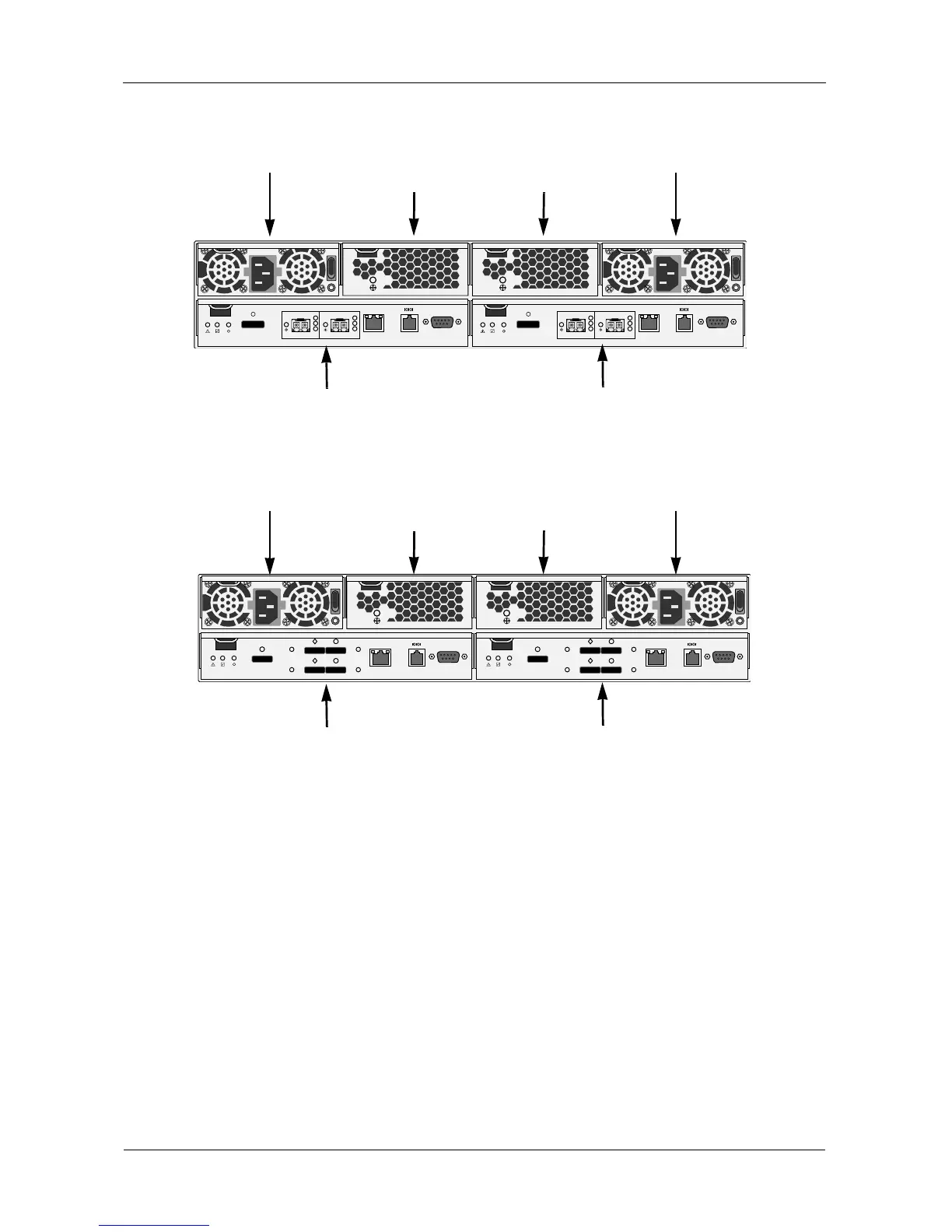

Figure 5. VTrak E310f rear view
Figure 6. VTrak E310s rear view
Architectural Description
The VTrak E610f and E310f are Fibre Channel subsystems suitable for Direct
Attached Storage (DAS), Storage Area Network (SAN), and Expanded Storage.
The VTrak E610s and E310s are Serial Attached SCSI (SAS) subsystems
suitable for Direct Attached Storage (DAS), Cascaded Storage, and Expanded
Storage.
The E-Class subsystems support:
• 1.5 Gb/s SATA disk drives
• 3.0 Gb/s SATA disk drives
• 3.0 Gb/s SAS disk drives
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
O
I
O
I
RAID Controller 1
Power Supply 1 Power Supply 2Cooling Unit 1
with Battery
Cooling Unit 2
with Battery
RAID Controller 2
Mgmt
UPS
115200
8 N 1
Mgmt
UPS
115200
8 N 1
O
I
O
I
RAID Controller 1
Power Supply 1 Power Supply 2Cooling Unit 1
with Battery
Cooling Unit 2
with Battery
RAID Controller 2
