Chapter 6: Maintenance
261

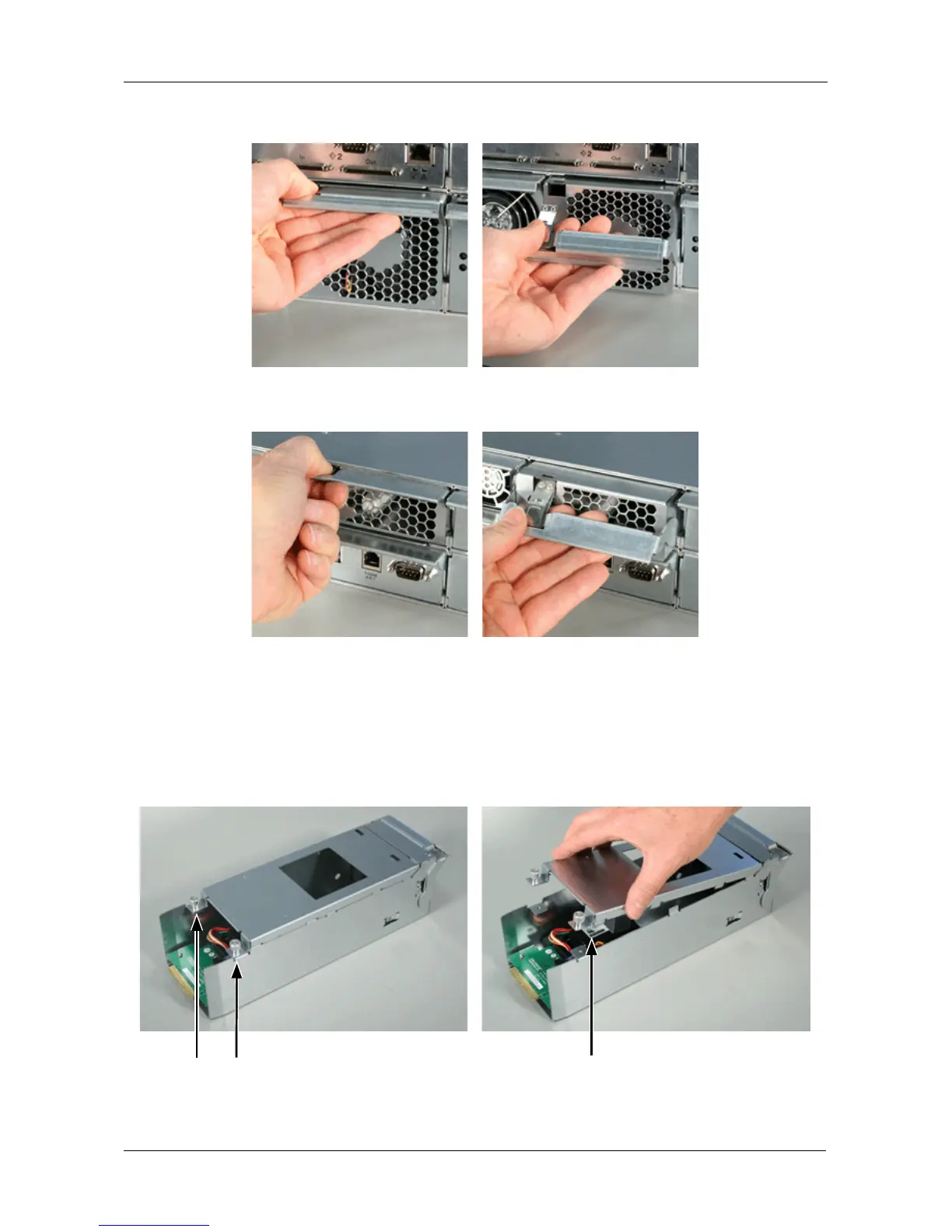

Figure 4. Removing a cooling unit from the E610f/s
Figure 5. Removing a cooling unit from the E310f/s
4. Loosen the thumbscrews. A retainer keeps the thumbscrews in place.
5. Grasp the top section near the thumbscrews and lift it off the bottom section.
Separate the cooling unit sections to access the blower. See Figure 6
(E610f/s) or 7 (E310f/s).
Figure 6. Loosen the thumbscrews and remove the cover (E610f/s)
Loosen the thumbscrews
Lift the cover
