VTrak E-Class Product Manual
264

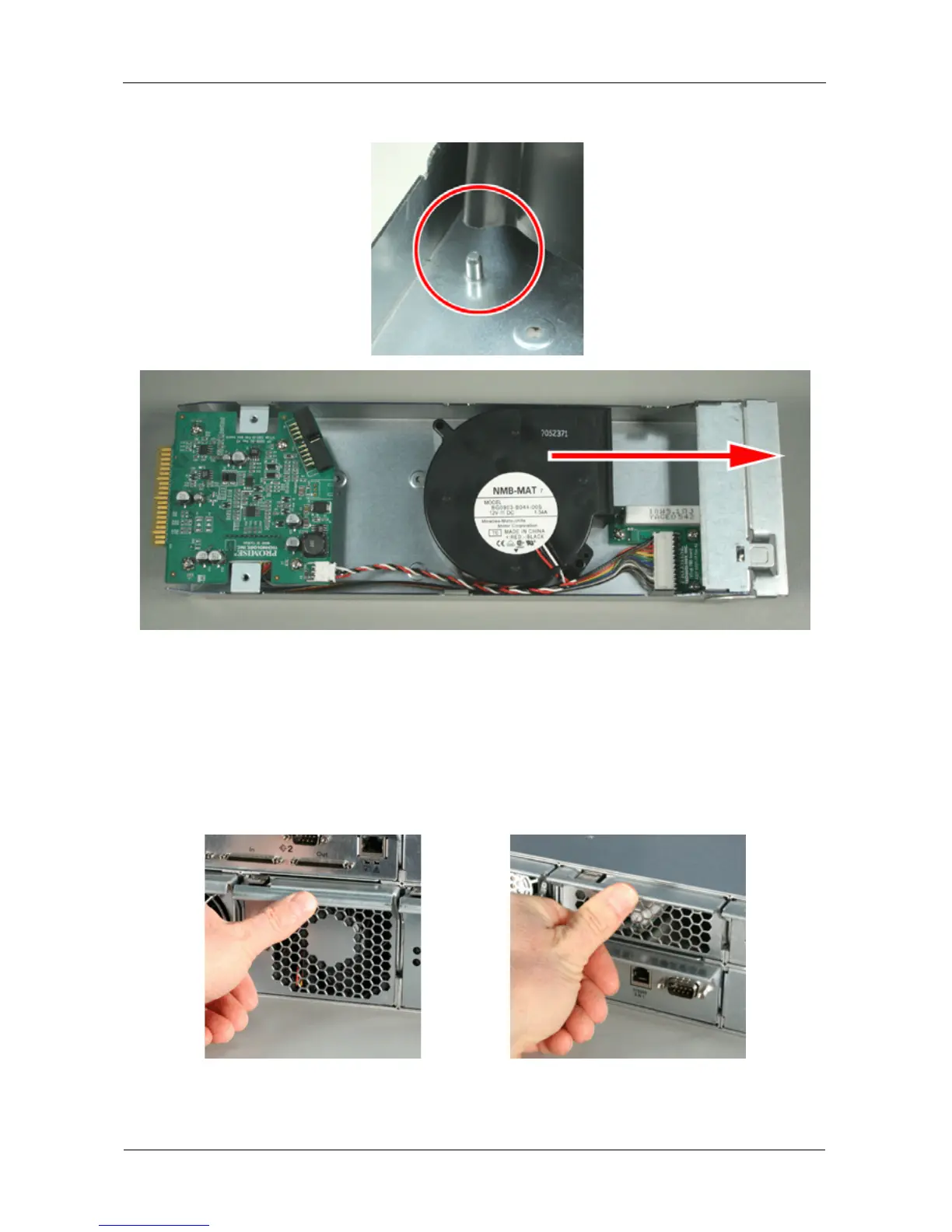

Figure 11.Positioning the blower onto the mounting pins, pointed outward
Be sure the blower points outward, towards the handle.
8. Place the top section of the cooling unit onto the bottom section and tighten
the thumbscrews.
9. Carefully slide the cooling unit into the enclosure.
10. Gently press the handle in and upward until it locks. See Figure 12.
Figure 12.Locking the cooling unit handle (left: E610f/s, right: E310f/s)
11. Verify that the Fan LEDs are green.
This completes the fan replacement procedure.
