Promise Technology VTRAK E610f User Manual

Chapter 6: Maintenance
267

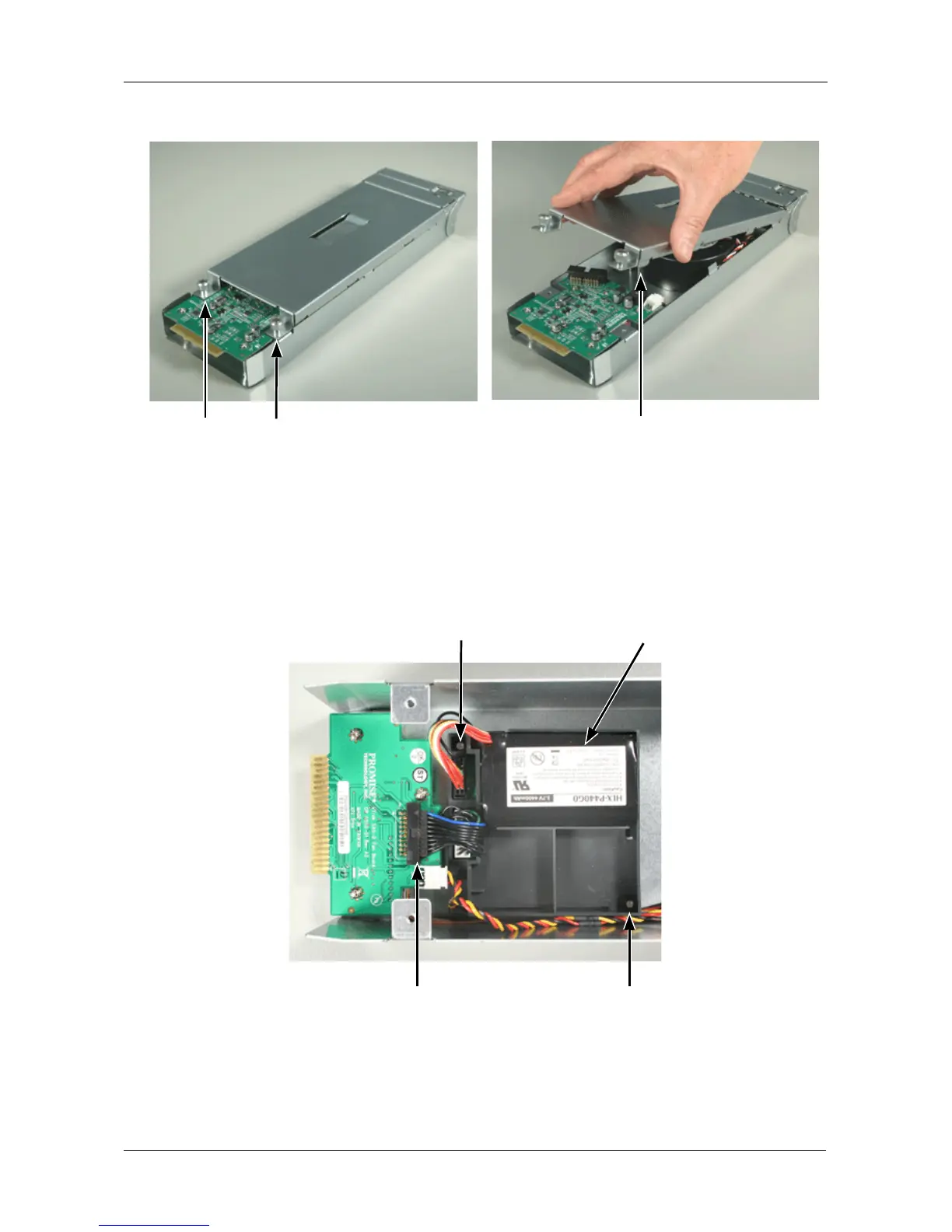

Figure 17.Loosen the thumbscrews and remove the cover (E310f/s)
5. Remove the two screws holding the battery assembly in place.
6. Detach the connector on the circuit board.
Do not detach any other connectors. See Figure 18 (E610f/s) or 19
(E310f/s).
Figure 18. Removing the battery assembly (E610f/s)
Loosen the thumbscrews
Lift the cover
Remove this screw
Remove this screwDetach this connector
Battery Assembly
