Chapter 2: VTrak Installation
17

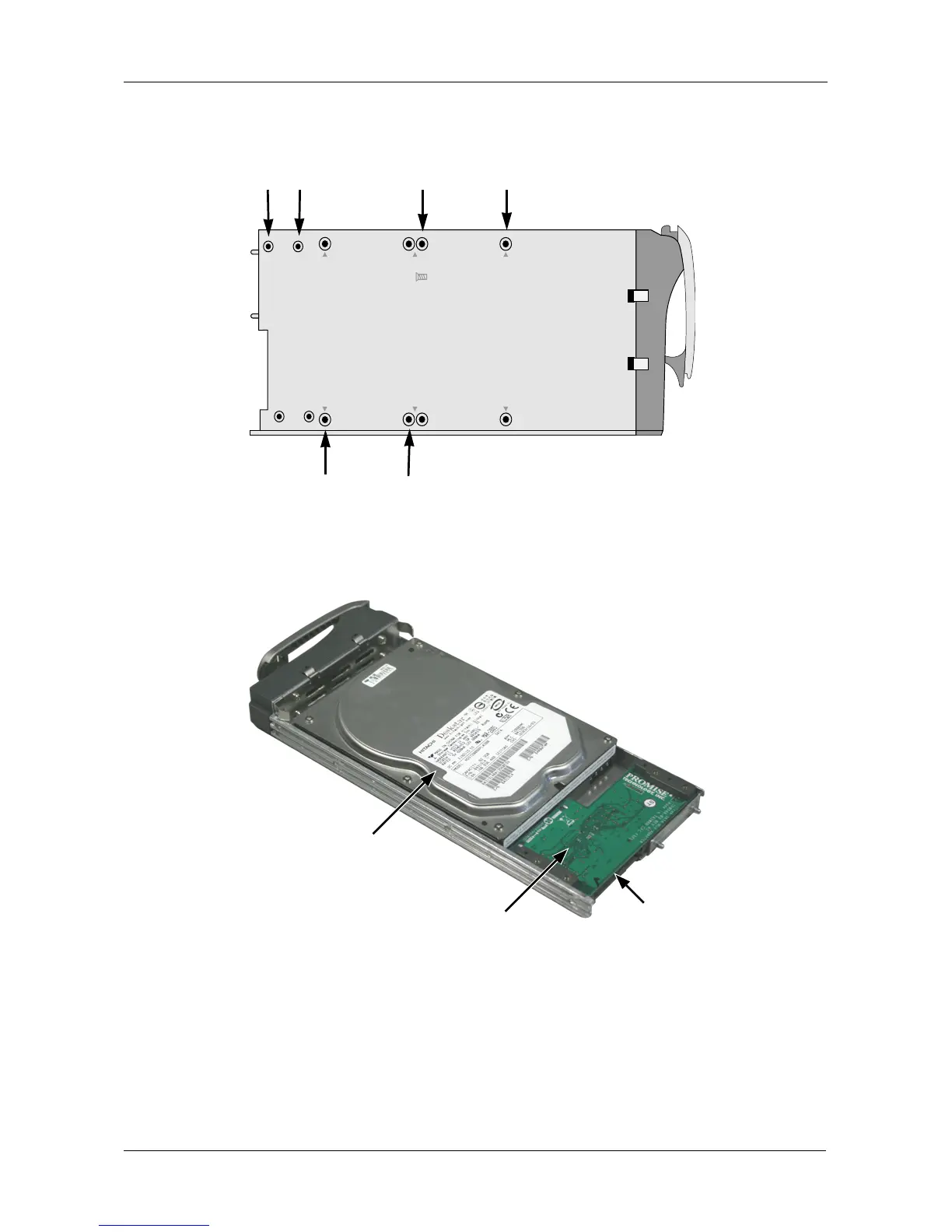

Figure 5. Disk drive mounting holes in the drive carrier
Figure 6. SATA drive mounted in a drive carrier with the AAMUX adapter
WARNING:
Counter-sink screws only.
AAMUX adapter
mounting holes
Drive mounting holes
without AAMUX
Disk drive mounting holes
with AAMUX
SATA disk drive
AAMUX adapter
SAS connector
