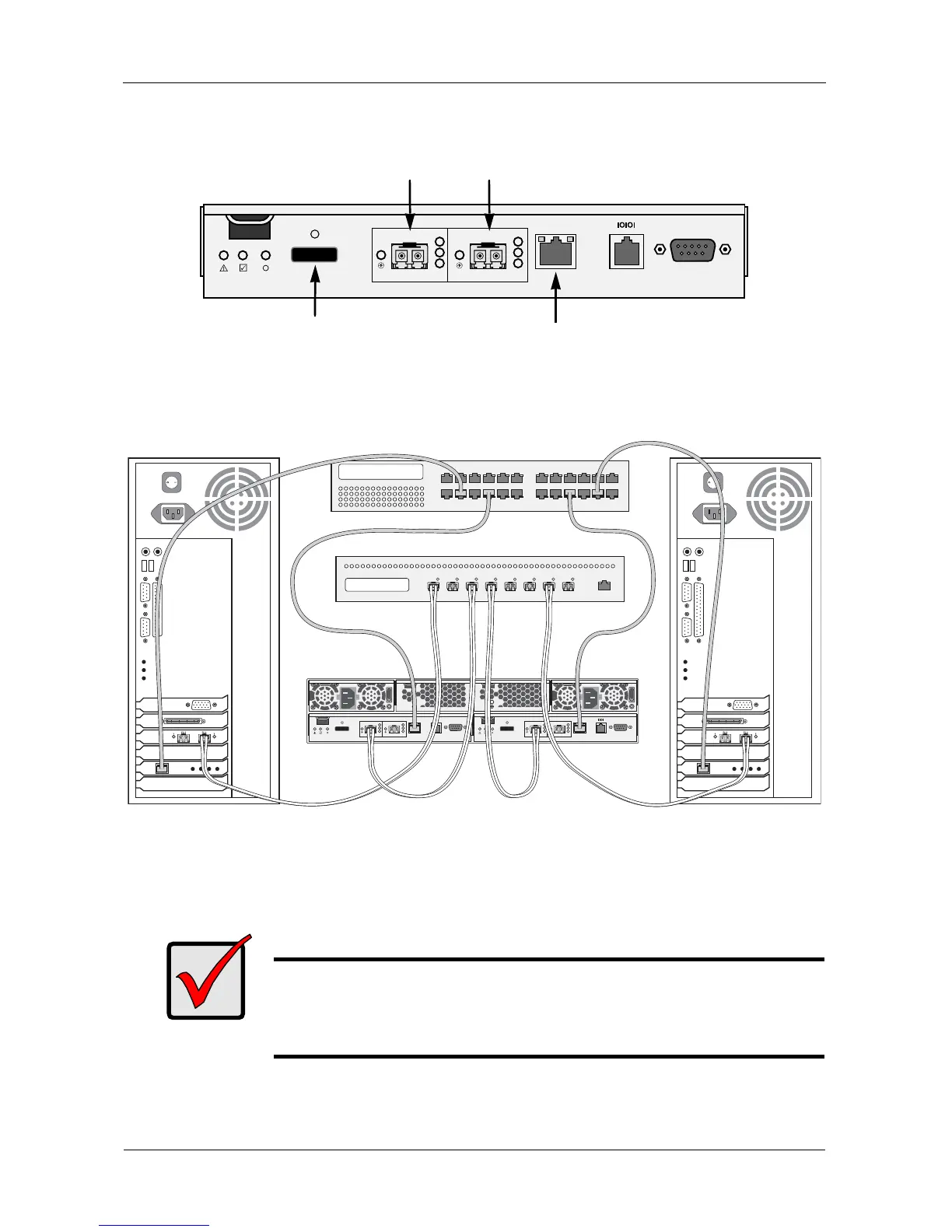

Figure 8. VTrak E610f and E310f data and management ports
Figure 9. FC SAN data and management connections
In the diagram above, the E310f model is shown. Connections for the E610f are
the same.
Important
For multipathing (MPIO) applications, see:
• “Appendix B: Multipathing on Windows” on page 367
• “Appendix C: Multipathing on Linux” on page 389
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
Fibre Channel data port 1
SAS expansion
port (to JBOD)
Management port
Fibre Channel data port 2
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
O
I
O
I
Host PC or Server
VTrak
Network Switch
FC Switch
Host PC or Server
