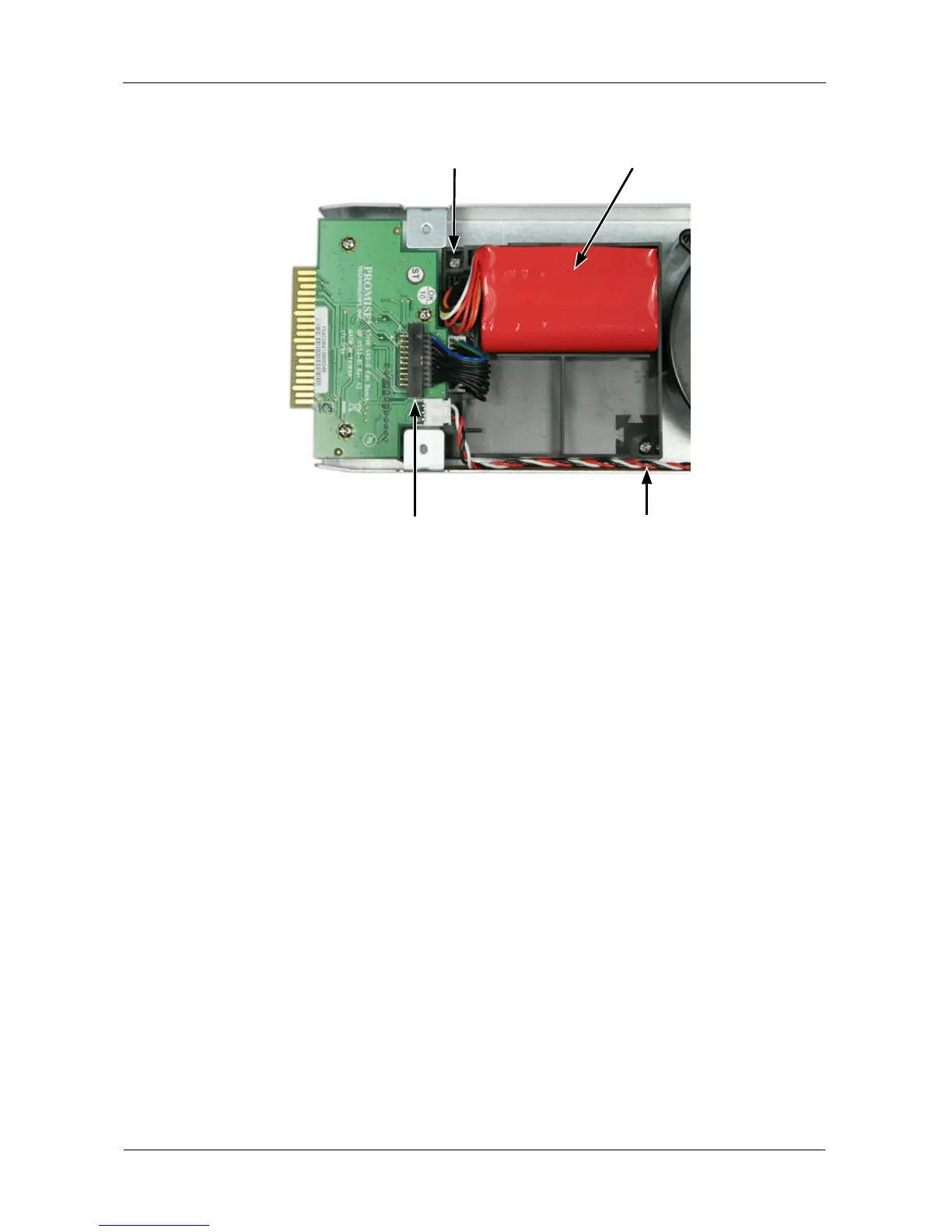

Figure 3. E310f/s cache battery installation
8. Place the top section of the cooling unit onto the bottom section and tighten
the thumbscrews.
9. Carefully slide the cooling unit into the enclosure.
10. Gently press the handle in and upward until it locks.
Mounting screw
Mounting screw
Attach this connector
Battery Assembly
