5. Connect the remaining J610s or J310s units in the same manner.
Be sure to connect circle icon to diamond icon or vice versa.
Keep your data paths organized to ensure redundancy.
You can combine J610s and J310s units in the JBOD expansion.

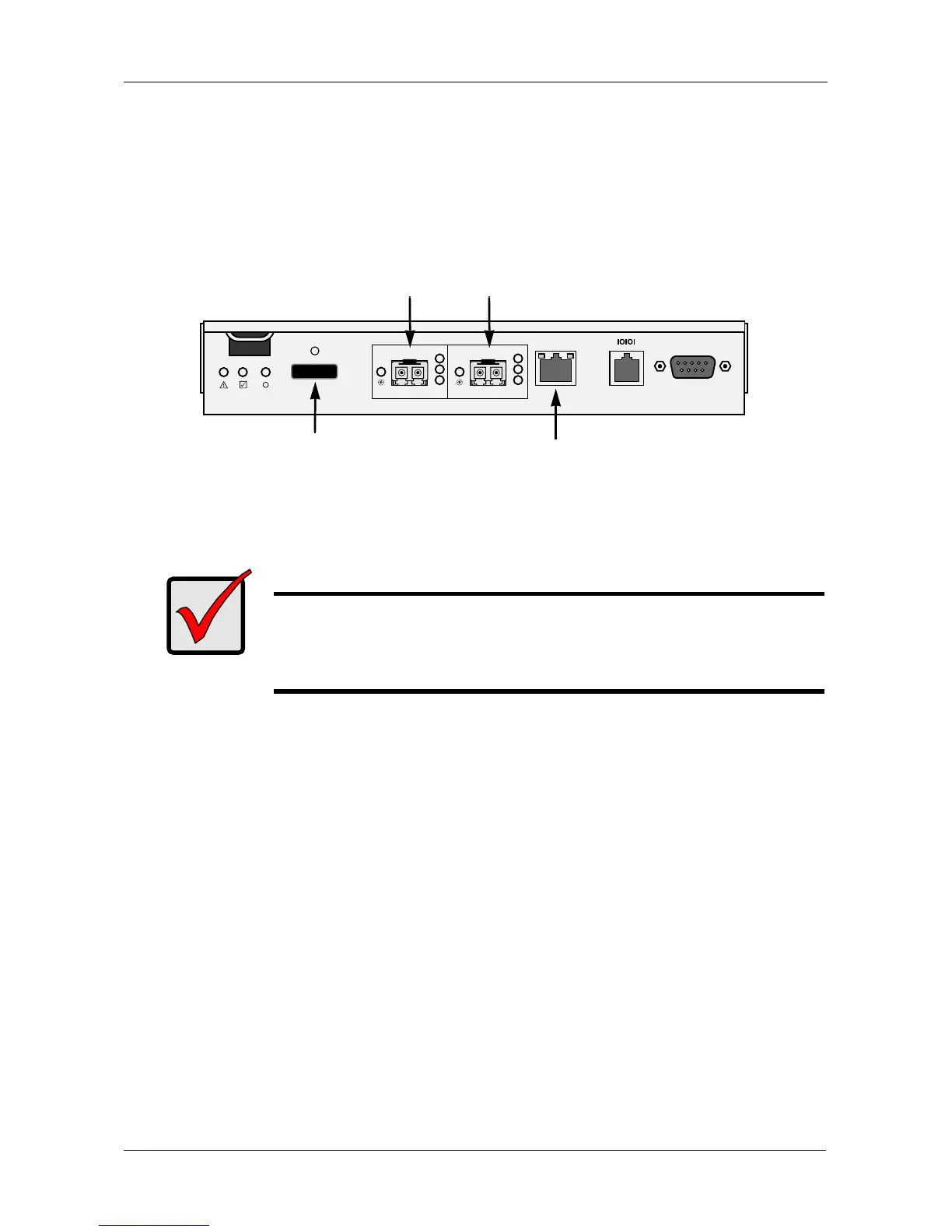

Figure 13.VTrak E610f and E310f data and management ports
In the diagram on the following page, the E310f and J310s models are
shown. Connections for the E610f and J610s are the same.
Important
For multipathing (MPIO) applications, see:
• “Appendix B: Multipathing on Windows” on page 367
• “Appendix C: Multipathing on Linux” on page 389
Mgmt
UPS
115200
8 N 1
FC 1 FC 2
4
2
1
Gb/s
4
2
1
Gb/s
Fibre Channel data port 1
SAS expansion
port (to JBOD)
Management port
Fibre Channel data port 2
